Uni-T UT383 Digital Mini Light Meter
Uni-T UT383 Digital Mini Light Meter

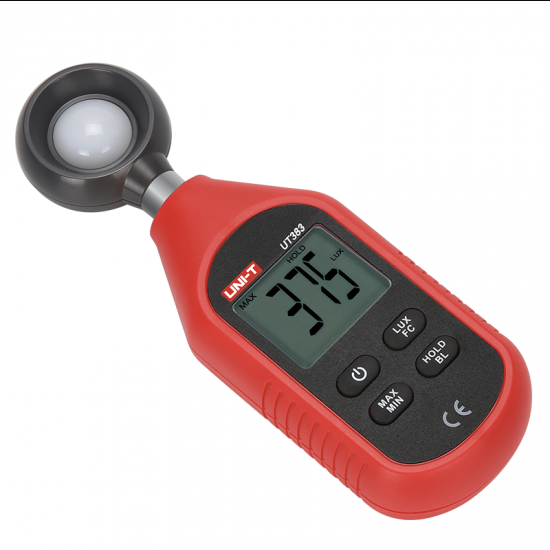

Uni-T UT383 Digital Mini Light Meter is a mini light meter equipped with photoelectric sensing technology, which can effectively represent light intensity with electrical signals, then processes data and displays the result on LCD. UT383 can effectively measure light intensity and display results in units of Lux or FC on screen. It is light weight, compact, ergonomic, and user friendly, making it a great tool for monitoring light intensity in homes, offices, schools, laboratories, indoor farming, hospitals, and other areas.
Features:
- Auto/manual range, data hold
- Auto power off
- MAX/MIN modes
- 2044 sets data storage
- Displays time and adjustable record intervals (0.5~255s)
- Restore to default mode
- Lux/FC selectable
Specifications:
|
Specifications |
UT383 |
|
Illuminance measurement (LUX) |
0~199,900Lux |
|
Illuminance measurement (FC) |
0~18,500Fc |
|
Accuracy |
0~9999Lux/0~999Fc: ±(4%+8) |
|
≥10000Lux/≥1000Fc: ±(5%+10) |
|
|
≥100000Lux/≥9999Fc: ±(5%+10) |
|
|
Resolution |
1Lux (0~9999Lux) |
|
10Lux (≥10,000Lux) |
|
|
100Lux (≥100,000Lux) |
|
|
1Fc (0~9999Fc); FC=Lux/10.76 |
|
|
10Fc (≥10,000Fc); FC=Lux/10.76 |
|
|
Sampling time |
0.5s |
|
Features |
|
|
Overload indication |
OL |
|
MAX/MIN |
√ |
|
Data hold |
√ |
|
LCD backlight |
√ |
|
Auto power off |
√ |
|
Low battery indication |
√ |
|
General Characterisitics |
|
|
Power |
1.5V battery (R03) x 3 |
|
Display |
32mm x 26mm |
|
Product color |
Red and grey |
|
Product net weight |
118g |
|
Product size |
160mm x 50mm x 28mm |
Applications:
- Lightening enterprise, agriculture and animal husbandry, mining enterprise, laboratory, office, household, street lights construction and others.
Package Includes:
- 1 x Uni-T UT383 Digital Mini Lux Light Meters Environmental Testing Equipment Handheld Type Lux Meter Illuminometer
