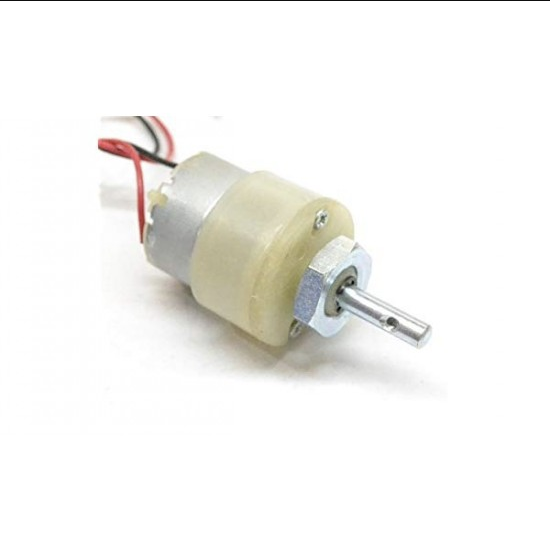

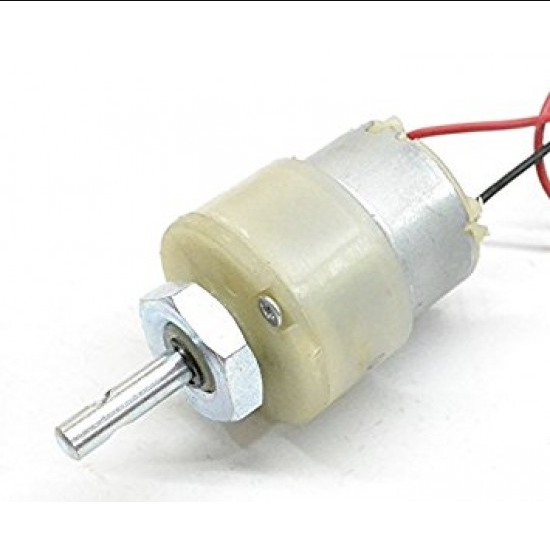

10 RPM 12V Center Shaft DC Geared Motor

10 RPM 12V Center Shaft DC Geared Motor is use for robotics applications. Very easy to use and available in standard size. Nut and threads on shaft to easily connect and internal threaded shaft for easily connecting it to wheel.

These motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the center of their gear box assembly.

These standard size DC Motors are very easy to use. Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. The L298N H-bridge module with onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC.

This DC Motor – 10 RPM – 12 Volts can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly.

Features :

• It comes with Good Quality Gears.
• The metal gears have better wear and tear properties.
• Gearbox is sealed and lubricated with lithium grease and requires no maintenance.
• Although motor gives 10 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
• The shaft has a hole for better coupling.

Specifications:

Package Includes :

• 1 x 10 RPM 12V Center Shaft DC Gear Motor
