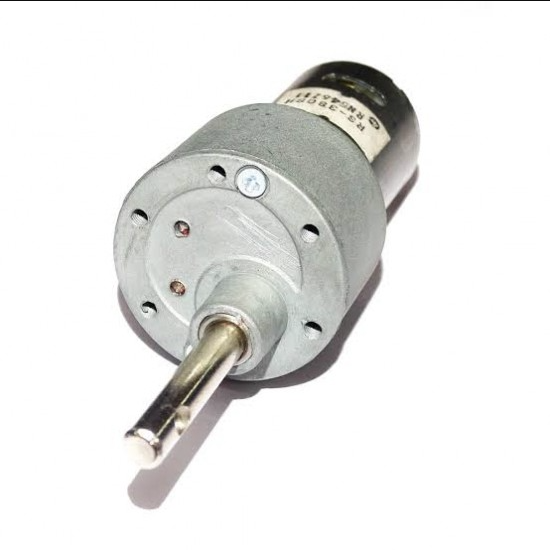

100 RPM 12V Johnson Geared DC Motor Grade-B

100 RPM 12V Johnson Geared DC Motor Grade-B is a simple DC motor featuring metal gearbox for driving the shaft of the motor, so it is a mechanically commutated electric motor which is powered from DC supply. The Johnson Geared Motors are known for their compact size and massive torque-speed characteristic.

This Johnson Motor comes with side shaft also known as an off-centered shaft and six M3 mounting holes. The shaft of the motor equips metal bushes which makes these DC gear motors Shaft wear resistant. The shaft of the motor has a hole for better coupling. It is best motor between DC Geared Motor and Side shaft Motors at reasonable cost.

The motor will run smoothly between the voltage range 6 to 18 V DC and give you 100 RPM at 12V supply. It provides the torque of 6 kg-cm at 100 RPM.

Features :

• The motor has sturdy construction.
• Shaft equips metal bushes for long life.
• It comes with High-Quality gears.
• The shaft has a hole for better coupling.

Note:

We are selling 2 types of Johnson Motors as “Johnson Geared Motor – Grade A” and “Johnson Geared Motor – Grade -B“, the only difference between them is the quality of materials used for manufacturing the motor. All other specification including look, dimensions, working etc. are same. The “Grade A Quality” motors shows slightly more torque count than “Grade-B” Johnson Motors and hence dominates “Grade-B” quality motors. So, the Johnson Geared Motor – Grade A Quality costs little more than Johnson Geared Motor – Grade-B.

Application:

Pan/ Tilt camera, auto shutter, welding machines, water meter, IC Card, grill, oven, cleaning machine, garbage disposers, household appliances, Slot machines, Money detector, automatic actuator, coffee machine, Towel disposal, lighting , Coin refund devices, Peristaltic pump

Schematic : CLICK HERE

Package Includes :

• 1 x 100 RPM 12V Johnson Geared DC Motor Grade-B
