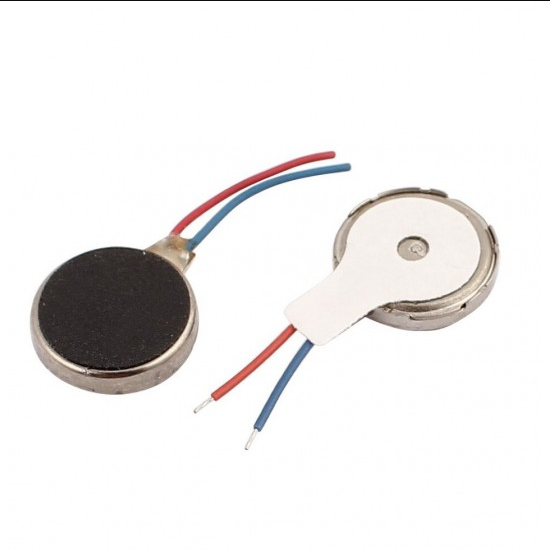

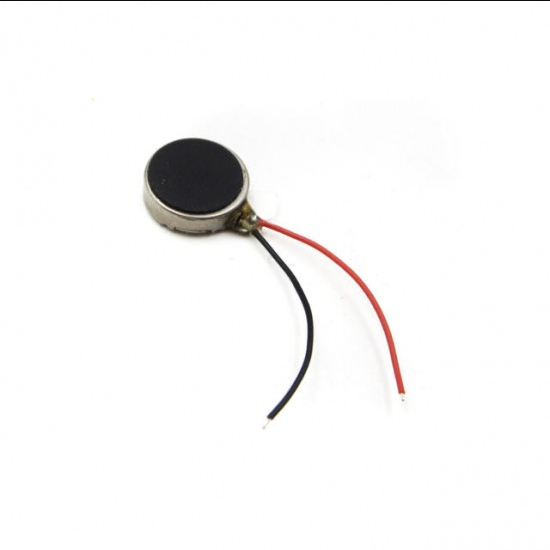

10mm Diameter 1034 Flat Button Type Cell Phone Vibration Motor (2 Pcs)

This Flat Button Type Cell Phone Vibration Motor is a shaftless vibration motor is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 3.4 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project.

The motor has a 3M adhesive backing on it for easy mounting and 1.5″ leads for making quick connections. Polarity is not important; the motor can run CW or CCW.

This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60 mA when 3 V is applied to its leads.

Specification:

Package Includes:

• 2 x 10 mm Diameter 1034 Flat Button Type 3V-4.5V CellPhone Vibration Motor
