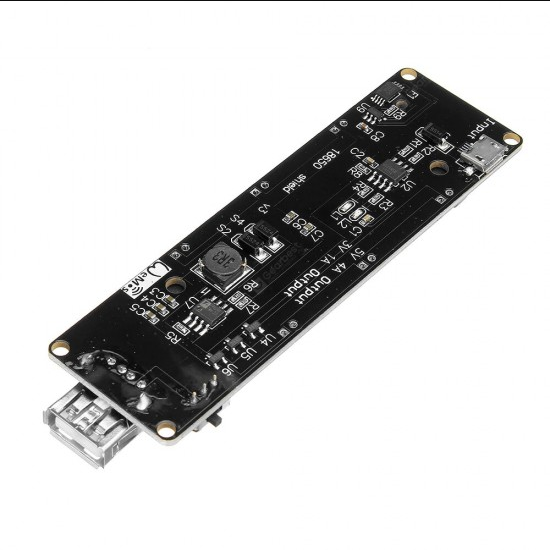

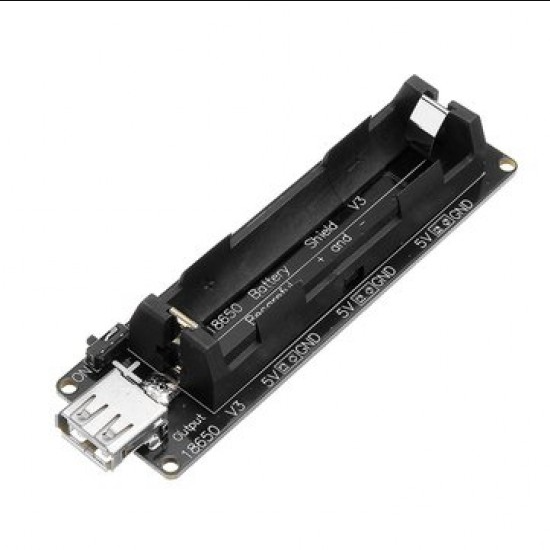

18650 Battery Charge Holder V3 0.5A USB Type-A Charging Protection Board

The 18650 Battery Charge Holder V3 0.5A USB Type-A Charging Protection Board is compatible for Arduino, Raspberry Pi,esp8266 or Sensors with protection. The output current can reach upto 2A.

Features:

• This module is suitable for 18650 battery only
• over-charging protection and over-discharge protection
• Micro USB port Charging Input
• A type USB Output
• Charge current: 0.5A
• 1 switches to control the USB output
• Input voltage: 5 ~ 8V
• Three 3V 1A output interface
• Three 5V 2A output interface
• LED light, green for full of charge, red for under charging
• Follow the direction "+" "-" on the PCB

Note:

• This module is suitable for 18650 battery only
• This module can be powered or for raspberry pi and sensor at the same time
• This module output current up to 2A
• (This product does not contain 18650 battery installation, be careful of the battery positive and negative when install, do not reverse. Please follow the + - direction on the PCB and do not follow the positive and negative directions on the battery holder)

Package Includes:

• 1 x 18650 Battery Charge Holder 0.5A USB Charging Protection Board
