3DR Radio Telemetry 433MHz 100mW kit

• Very small size & Lightweight (under 4 grams without antenna)
• Transparent serial link
• MAVLink protocol framing and status reporting
• Frequency hopping spread spectrum (FHSS)
• Adaptive time division multiplexing (TDM)
• Support for LBT and AFA
• Configurable duty cycle
• Interchangeable air and ground modules
• Micro-USB port
• 6-position DF13 connector
• 100 mW maximum output power (adjustable)
• Based on HopeRF’s HM-TRP module
• RP-SMA connector
• 2-way full-duplex communication through adaptive TDM
• UART interface
• Transparent serial link
• MAVLink protocol framing
• Frequency Hopping Spread Spectrum (FHSS)
• Configurable duty cycle
• Error correction corrects up to 25% of bit errors
• Configurable through Mission Planner and APM Planner
• Built-in error correcting code (can correct up to 25% data bit errors)
• The demonstrated range of several kilometers with a small Omni antenna
• Can be used with a bi-directional amplifier for even more range
• AT commands for radio configuration
• RT commands for remote radio configuration
• Adaptive flow control when used with APM

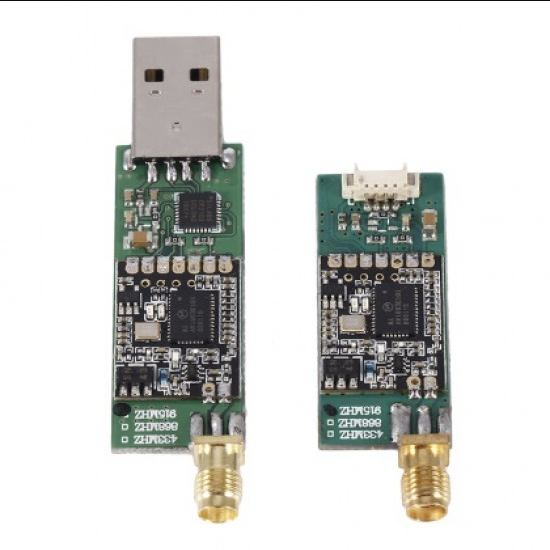

• Based on the HopeRF HM-TRP radio module, featuring a SiLabs Si1000 RF microcontroller.

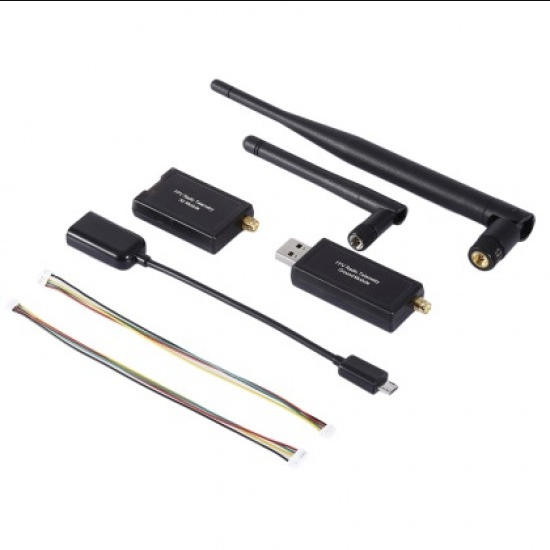

• 1 x 3DR Radio Telemetry with the case and Tx and Rx Antenna.
• 2 x cables (APM/PIX).
• 2 x 3.5dbi antennas.

Useful Links :

• SIK Firmware
