50kg Half-bridge Experiments Body Scale load cell sensor
star
star
star
star
star
0
rating
Just for you!
SKU:
Anil300
MRP: Rs.
115.70
Rs.
99.00
(Incl. Tax)
Save Rs.
16.70
(14%
off)
Rs.
89.10 / pack of 1 = Rs.
89.10 per piece
Pay later available
on orders above ₹300
Quantity

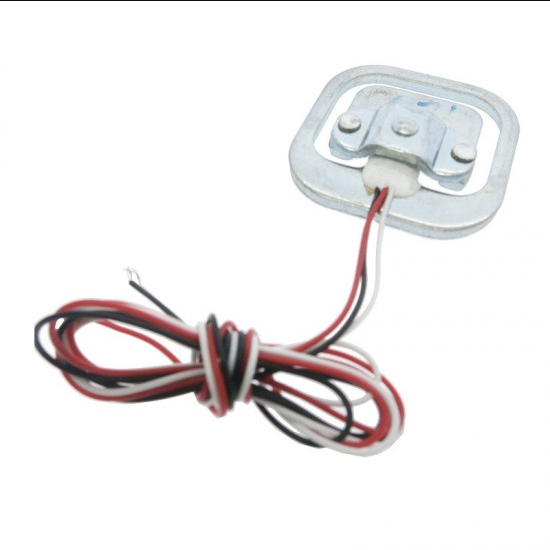

50kg Half-bridge Experiments Body Scale load cell sensor
The 50kg Half-bridge Experiments Body Scale Load Cell Sensor is measuring; the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the intermediate, adhesive coating with white beam arms); and the outer edges to form a shear force in the opposite direction, i.e., middle strain beam bending necessary changes can occur under stress, strain beam side by another force should not be a barrier.
The sensor can be used with the following three methods
- Using a sensor with an external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for an external resistor.
- The uses of only two full-bridge sensors measuring range are the range of the two sensors and: 50kgx2 = 100kg.
- The use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg.
Features :
- Internal 1000 Ohm half-bridge strain gauge load cell, the range is 50kg, half-bridge structure.
- Widely used in hopper scales, platform scales, platform balance, belt scales, and other electronic weighing devices.
- This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends the signal via the red signal wire.
- Alloy Steel wired weighing load cell, high accuracy, simple structure, simple installation.
- You can use multiple load sensors simultaneously to increase the capacity range, Parallel use to add additional capacity.
Specifications:
|
Capacity (Kg) |
50 |
|
Output Sensitivity (mv/v) |
1 ± 0.1 |
|
Nonlinearity (%FS) |
0.03 |
|
Repeatability (%FS) |
0.03 |
|
Input Resistance (Ω) |
1000 |
|
Insulation Resistance (MΩ) |
5000 |
|
Cable Length (cm) |
35 |
|
Length (mm) |
34 |
|
Width (mm) |
34 |
|
Height (mm) |
8 |
|
Weight (gm) |
20 |
Package Includes:
- 1 x 50kg Half-bridge Experiments Body Scale Load Cell Sensor
