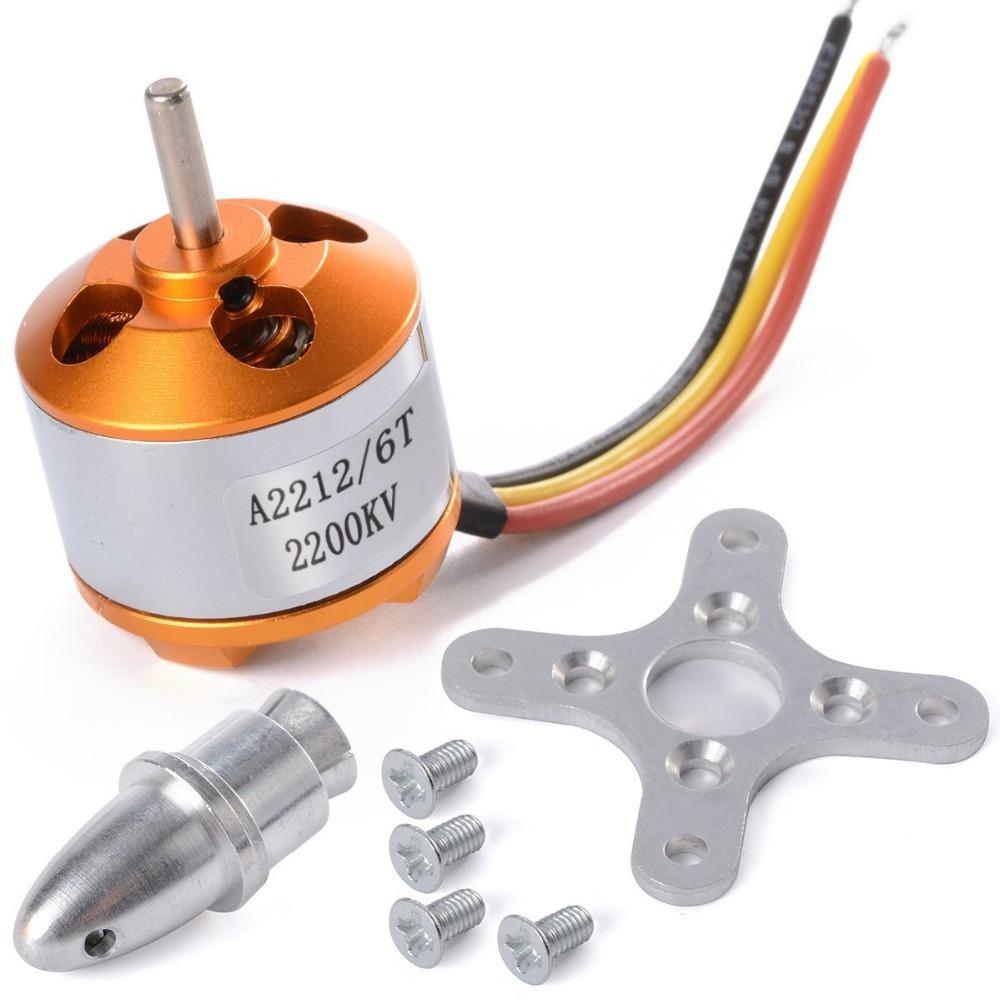

A2212 2200KV BLDC BRUSHLESS DC MOTOR

SPECIFICATION:​

• Battery: 2~4 Cell /7.4~14.8V
• RPM: 2200kv
• Max current: 30A
• No load current: 1.7A
• Max power: 430W
• Internal resistance: 0.052 ohm
• Weight: 102g (including connectors)
• Diameter of shaft: 5mm
• Dimensions: 35x36m
• Prop size: 7.4V/11x5 14.8V/10x6
• Max thrust: 1160g

A2212 2200KV BLDC Brushless DC Motor is widely used for airplane aircraft quadcopter. This motor comes with 80% maximum efficiency, 4-10A max current efficiency, and 12A / 60s current capacity. If you're looking about your quadcopter's performance, look no further than the A2212. Built with high-end magnets, a high pole count and custom motor mount, this motor is designed purely for multi-rotor applications. The A2212 includes an integrated prop adaptor for use with many different style props featuring a 4mm shaft and adaptor sleeves for 5mm/6mm props. It also has an in-built aluminum mount for quick and easy installation on your quadcopter frame. This is not a modified airplane out a runner. It was designed from the ground up specifically for multi-rotor applications.

This 2200kv brushless motor is equipped with the solid metal case which makes it reliable and durable. This A2212 Motor comes with the pre-soldered good quality connector for a fast and direct connection between ESC and the motor.

Note: “This motor is bi-directional which means it can rotate in CW or CCW direction by swapping the polarity of input supply.”

Features :

• The steel design is capable of withstanding competitional conditions.
• Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
• Compact size.
• Offers great performance and value for money.
• Smooth throttle response for best RC experience.
