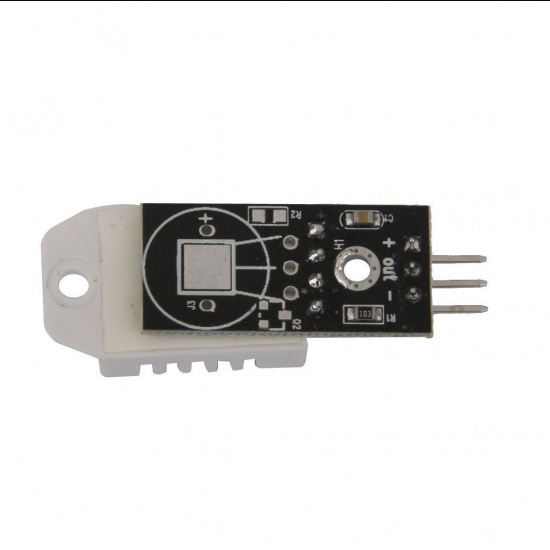

DHT22 Temperature and Humidity Measurement Sensor Module

DHT22 capacitive humidity sensing digital temperature and humidity module is one that contains the compound has been calibrated digital signal output of the temperature and humidity sensors. Application of a dedicated digital modules collection technology and the temperature and humidity sensing technology, to ensure that the product has high reliability and excellent long-term stability.

DHT22 Temperature  and Humidity Measurement Sensor Module includes a capacitive sensor wet components and a high-precision temperature measurement devices, and connected with a high-performance 8-bit micro-controller. The product has excellent quality, fast response, strong anti-jamming capability, and high cost.

Standard single-bus interface, system integration quick and easy. Small size, low power consumption, signal transmission distance up to 20 meters, making it the best choice of all kinds of applications and even the most demanding applications.

DHT22 has higher precision and can replace the expensive imported SHT10 temperature and humidity sensor.

It can measure the environment temperature and humidity to meet the high demand. The product has high reliability and good stability. If it's used and combined with special sensor Arduino expansion board, it will be easily implemented the interactive effect which related to the temperature and humidity perception.

Caution: DHT22 digital temperature and humidity sensor is designed for analog sensor interfaces. The analog port will be used as the digital which will not occupy the original digital port of the Arduino. The lines of the sensor which can transform the analog function to digital that can be use on digital port.

Features:

• 4-pin package
• Ultra-low power
• No additional components
• High precision
• Capacitive type
• Full range temperature compensated
• Excellent long-term stability
• All calibration, digital output
• Completely interchangeable
• Low power consumption
• Long distance signal transmission
• Relative humidity and temperature measurement
• Humidity sensor, temperature DHT22 footprint built-in resistor 5.1k help users connect and use simpler than the DHT22 sensor footprint.
• Compared to the DHT11, the DHT22 has higher accuracy and wider measuring range.?The module is designed to operate at 5V DC.

Specifications:

Pin Description:-

• Pin 1:     Power +Ve (5V Max wrt. GND)
• Pin 2:     Digital I/O interface connected to microcontroller
• Pin 3:     Power Ground or Power –Ve

Application:

• UV tester, UV watches, outdoor sports equipment, mobile phone, etc.
• You can use this product, especially the world only in the field of mobile phone specification. And there is a direct corresponding UV INDEX (UV INDEX) of the linear current.

Package Includes:

• 1 x DHT22 Digital Temperature Humidity Measurement Sensor Module
