DRV8825 Stepper Motor Driver with Aluminum Heat Sink

3D Printer Parts

DRV8825 Stepper Motor Driver with Aluminum Heat Sink

star star star star star

0 rating

Just for you!

SKU: Anil248

MRP: Rs. 129.00

Rs. 119.00 (Incl. Tax)

Save Rs. 10.00 (8% off)

Rs. 107.10 / pack of 1 = Rs. 107.10 per piece

Pay later available

on orders above ₹300

View options

Quantity

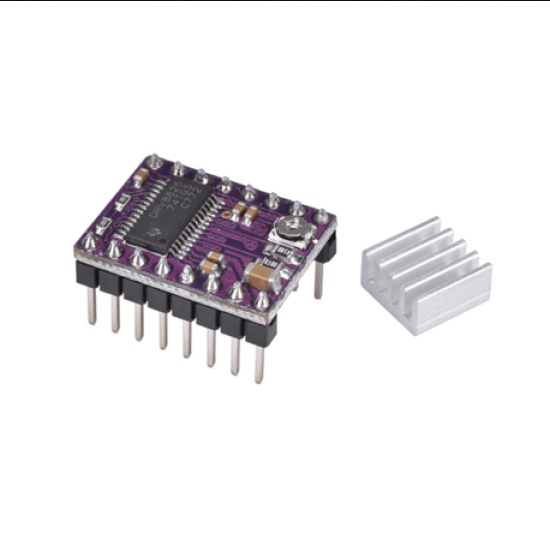

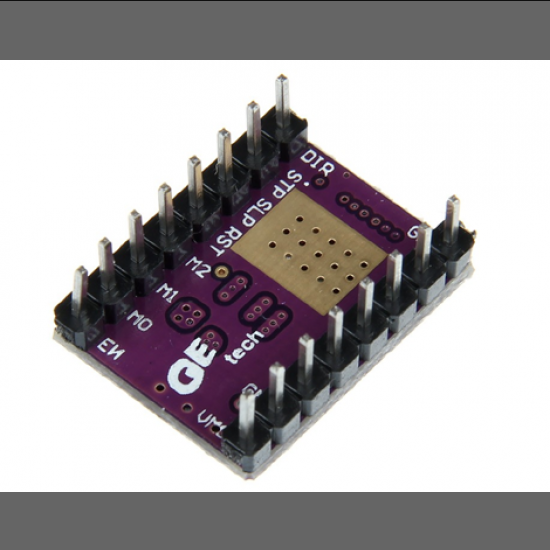

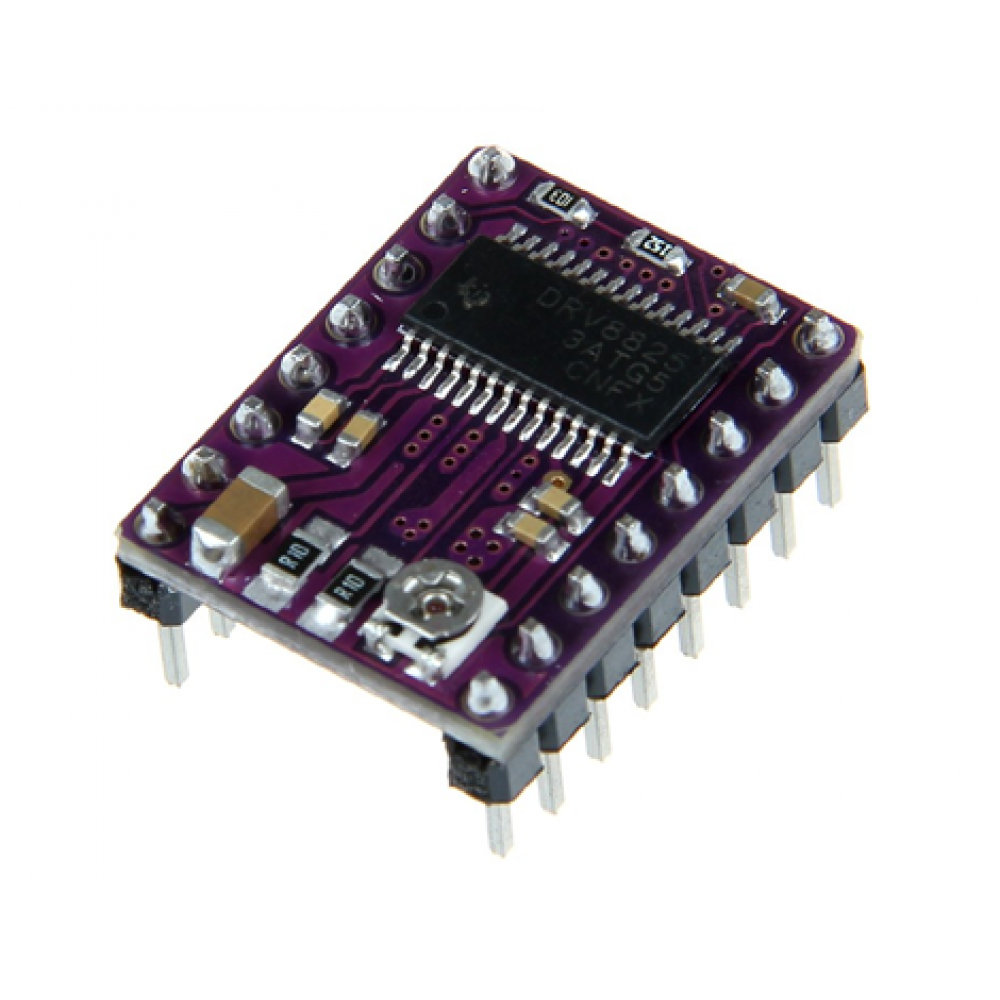

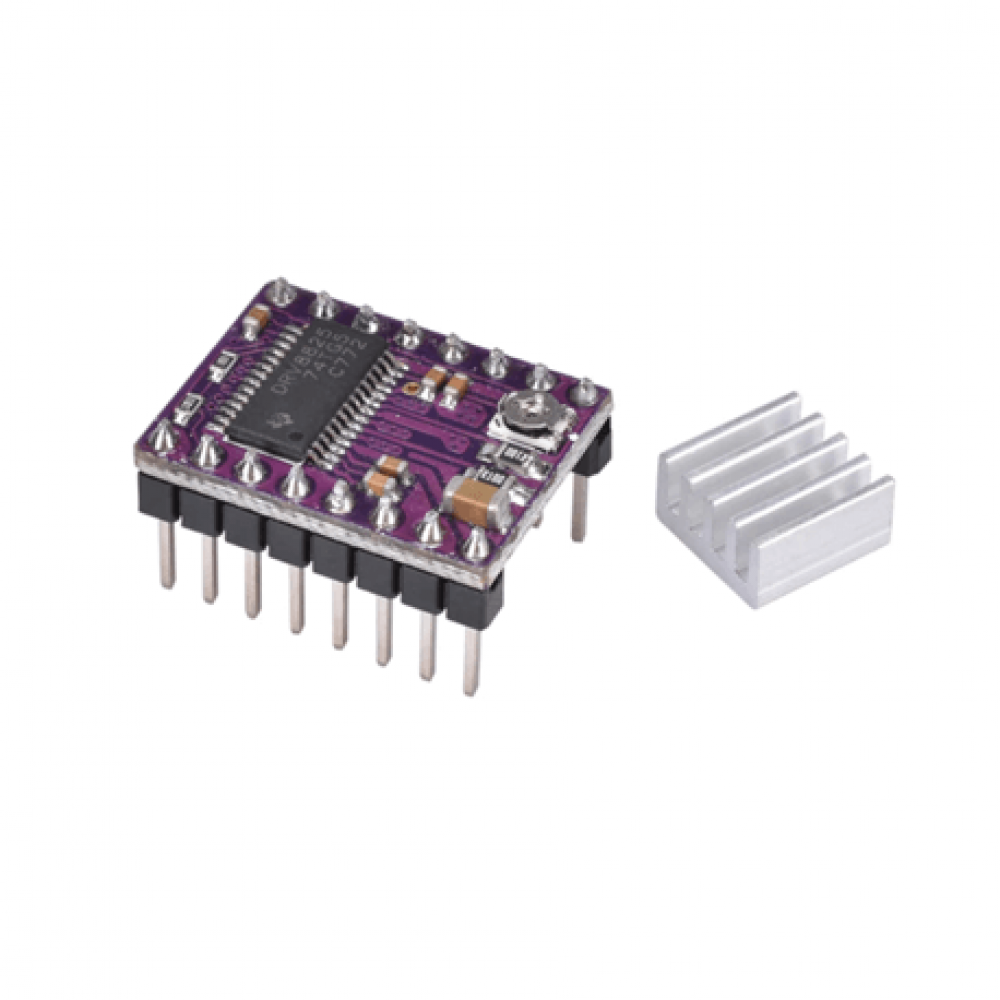

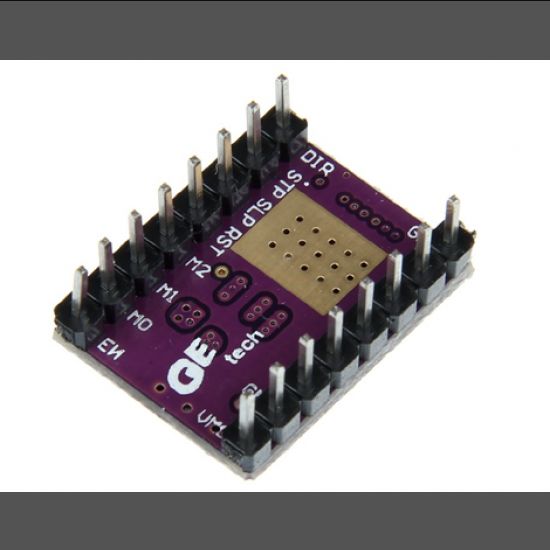

DRV8825 Stepper Motor Driver with Aluminum Heat Sink is a carrier board or breakout board for TI’s DRV8825 stepper motor driver; we therefore recommend careful reading of the DRV8825 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2.2 A output current per coil .

Features:

Simple step and direction control interface
Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
45 V maximum supply voltage
Built-in regulator (no external logic voltage supply needed)
Can interface directly with 3.3 V and 5 V systems
Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
Short-to-ground and shorted-load protection
4-layer, 2 oz copper PCB for improved heat dissipation
Exposed solderable ground pad below the driver IC on the bottom of the PCB

Specifications:

Supply Voltage (V)	8.2 to 45
Current Handling Capacity	2.2 A (Max.)
Continuous Current (A)	1.5 (per phase)
Logic Input	2.5 to 5 V
Microstep resolutions	Full, 1/2, 1/4, 1/8, 1/16 and 1/32
Reverse voltage protection	No
Length (mm)	15
Width (mm)	20
Weight (gm)	4
