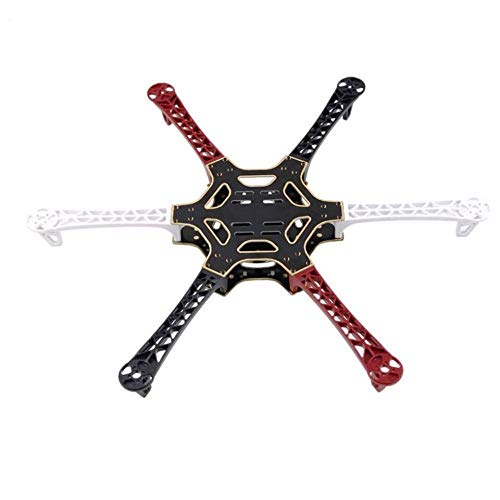

F550 HEXACOPTER FRAME WITH INTEGRAED PCB

 Features :

• Built from quality glass fiber and polyamide nylon.
• Integrated PCB connections for direct soldering of your ESCs
• Pre-threaded brass sleeves for all of the frame bolts.
• Colored arms for orientation to keep you flying in the right direction.
• Large mounting tabs on main frame bottom plate for easy camera mounting.
• Ideal for carrying larger payloads such as camera systems and other electronic components.
• Easy assembly.

Specifications

• Width: 550mm
• Height: 55mm
• Weight: 435g (w/out electronics)
• Motor Mount Bolt Holes: 16/19mm

    Required:

• 6 x 2212 1000~1200kv (or similar size/kv)
• 6 x 15~25 Amp ESC
• 6 x 8x4~10x4.7 Prop (3CW & 3CCW)
• 1 x Flight control board
• 1 x 2200~3000mAh 3s 11.1v Lipoly Battery
