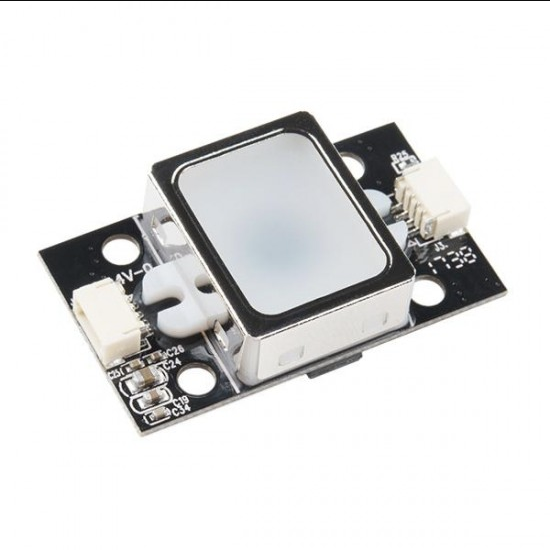

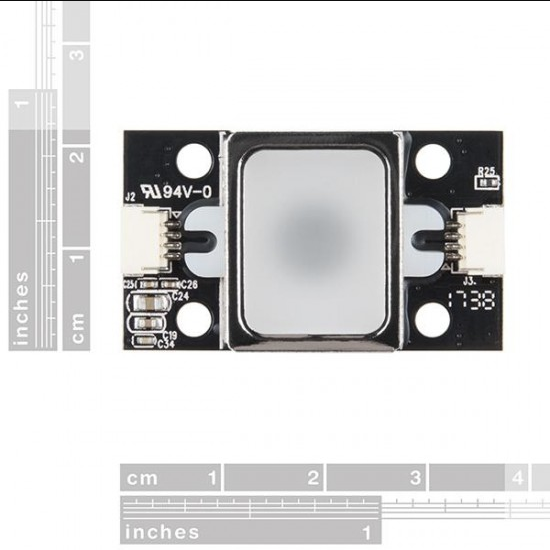

Fingerprint Scanner Module GTM-5210F12 (TTL) with Cable

Fingerprint Scanner Module GTM-5210F12 fingerprint module from Techtonics communicates over TTL Serial so you can easily embed it into your next project. The module itself does all of the heavy lifting behind reading and identifying the fingerprints with an onboard optical sensor and 32-bit ARM Cortex M3 processor. It is one chip fingerprint module designed for integration into products with UART interface. It is configured as a USB mass storage device so it no need additional effort to handle driver.

There are four types of fingerprint scanner: the optical scanner, the capacitance scanner, the ultrasonic scanner, and the thermal scanner. The GTM-5210F12 Fingerprint Scanner Module is an optical scanner module. This optical scanner takes a visual image using a digital camera.

The idle module is woken by a finger touching the metal frame of the sensor. The pictures of the fingerprints are processed on-board by the fingerprint algorithm (low power 32-bit ARM Cortex-M3 processor) and convert it into strings of data. These so-called ‘templates’ are residing on the module configured as a USB mass storage device. They can store and share through a database with other modules in a network, allowing easy enrollment of many users.

To get started, just register each fingerprint that you want to store by sending the corresponding command and pressing your finger against the reader three times. The fingerprint scanner can store different fingerprints, and the database of prints can even be downloaded from the unit and distributed to other modules. In addition to the fingerprint "template," the analyzed version of the print, you can retrieve the image of a fingerprint and even pull raw images from the optical sensor!

The main difference between GTM-5210F12 and GTM-5210F52 is fingerprint storage capacity.

Features :

Ultra-thin Optical Sensor.
High-accuracy & high-speed fingerprint identification technology.
Works well with dry, moist or rough fingerprints.
200 fingerprints storage.
Wake up on Finger Function.
Easy one-touch enrollment.
1: 1 verification, 1: N identification.
Simple UART & USB communication protocol.
external UART-to-USB converter required (TX & RX levels: 3.3V).
Complies with USB 2.0 full-speed (12 Mbps) specifications.
Reading & writing fingerprint template(s) (i.e. processed data) from/to the device.
Downloading the raw bitmap image from the device (catalog fingerprints).
Anti-Scratch with surface high hardness ≧ 5H.

Specifications:

Sensor	GTM-5210F12 Optical
Finger window(mm)	12.9 x 16.9
No. of fingerprints can store	200
Resolution	450 dpi
Operating Voltage(V)	Power pin:3.3V~6V, Tx/Rx pins: 3.3V
Operating Current (mA)	< 130
CPU	ARM Cortex M3 Core MCU)
The size of template	496 Bytes (template) + 2 Bytes (checksum)
Image Size	258 x 202 Pixels
False Acceptance Rate (FAR)	< 0.001%
False Rejection Rate(FRR)	< 0.1%
Enrollment Time	< 3 sec (3 fingerprints)
Identification Time	< 1.5sec
