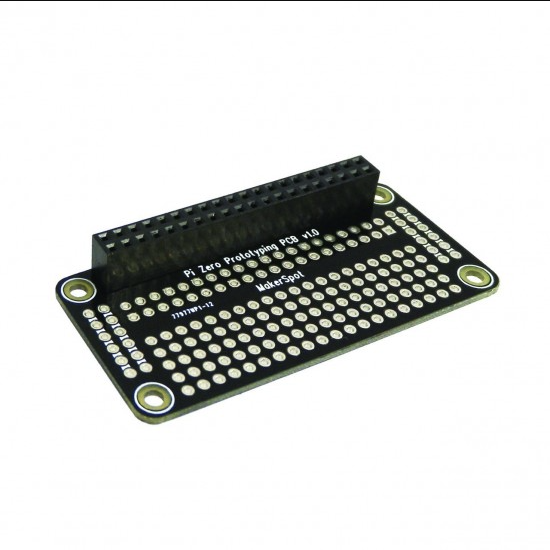

HAT DIY PCB Prototyping Board for Raspberry PI ZERO

HAT DIY PCB Prototyping Board for Raspberry PI ZERO. Raspberry PI ZERO’s HAT DIY PCB Prototyping Board can move your breadboard project to this prototyping board, which perfectly fits onto Raspberry Pi Zero (W). This prototyping board can also be used on A+, B+, Pi 2, and Pi 3 as half-size header board. With little soldering work, you can pack your project nicely on a Raspberry Pi Zero (W) and make it look professional!

The high-quality HASL PCB finishing is easier for hand soldering than gold plated or immersion gold PCB finishing.

What is it?

This board will help you make your projects quickly and easily. No mess of wires running around, the board layout is of breadboard style.

What makes it special?

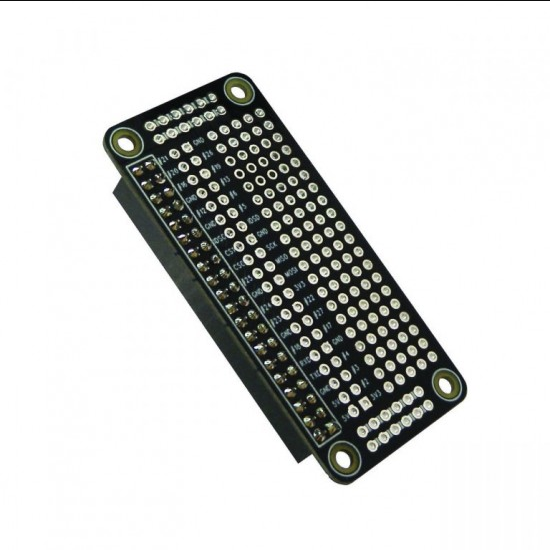

It has bread-board style layout, also it has the label of the 40 pin GPIO on the board, so you don’t have to stick stickers or keep it print of the pin-out or have it open on a mobile device for reference. The 40pin GPIO is broken out in the protoboard. All the pins are isolated with each other.

It is of the same size as the Pi Zero with matching holes with the main board for easy mounting. It also has ample of space making small prototypes

You can create awesome projects using these board keeping a small footprint like create nodes for your home automation project or create an environment monitoring system with temperature, humidity and gas sensors or any other project you wish to make. Works with all raspberry pi with 40 pins. The boards can be stacked on top of one another.

Note:

• Header pins are not Pre-soldered on Board for the user convenience.
• The board comes in two colors ie. Black and Green we will ship it as per Stock Availability.

Features :

• 164 holes of prototyping area
• 4 rows of 6 connected holes for power rails and other purposes
• Silkscreen marking for 40-pin Pi Header reference
• High-quality HASL PCB finishing
• D0.9mm drill holes and D1.9mm pad size
•
• Dimensions: 65 x 30 mm
• PCB Thickness: 1.60 mm
• Weight: 13 gm(With all accessories)
• PCB Color: Black/Green

Package Includes :

• 1 x HAT DIY PCB Prototyping Board for Raspberry PI ZERO
• 1 x Header Pins
• 1 x Mounting accessories

Note: Package Does not Include Raspberry Pi.
