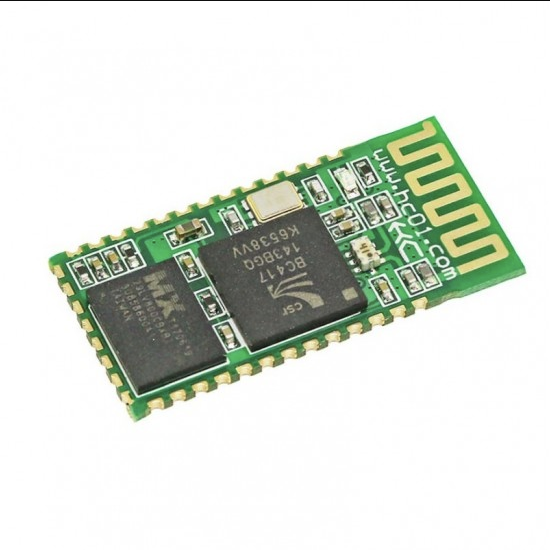

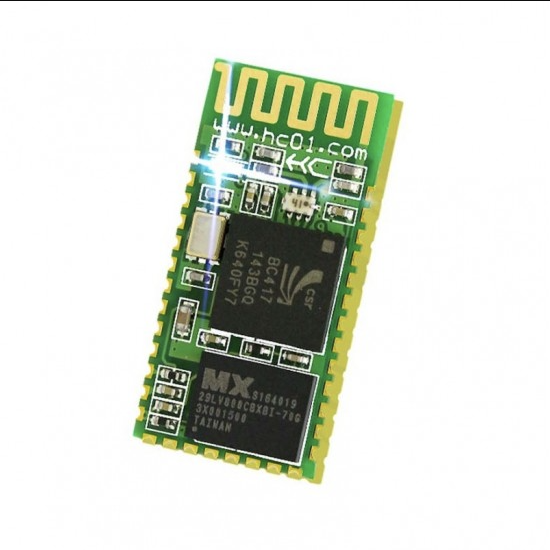

HC-06 Wireless Bluetooth Module HC06

Bluetooth Module HC-06 is a Drop-in replacement for wired serialconnections, transparent usage. You can use it simply for serial portreplacement to establish connection between MCU and GPS, PC to your embeddedproject / Robot etc. The module can be configured for baud rates 1200 to 115200bps. This is a Slave mode only Bluetooth Device.

The HC-06 Wireless Bluetooth Module is a Serial port Bluetooth module which having fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and baseband.

It uses CSR Blue core 04-External single-chip Bluetooth with CMOS technology and frequency hopping spread spectrum technique (FHSS) to avoid interference with other devices and to have full duplex transmission. The device works on the frequency range from 2.402 GHz to 2.480GHz.

Features:

• Works with any USB Bluetooth adapters.
• Default Baud Rate: 9600,8,1,n.
• Built-in antenna.
• Coverage up to 30ft.

Specifications:

HC-06 Bluetooth Module Advantages

• HC-06 is the best option when short-distance wireless communication is needed. The module is used for wireless communications of less than 100 meters.
• The module is very easy to interface and to communicate.
• The module is one of the cheapest solutions for wireless communication of all types present in the market.
• The module consumes very less power to function and can be used on battery-operated mobile systems.
• The module can be interfaced with almost all controllers or processors as it uses the UART interface.

Applications

• Hobby projects
• Engineering applications
• Robotics
• Mobile Phone Accessories
• Servers
• Computer Peripherals
• Sports and Leisure Equipment
• USB Dongles

Package Includes:

• 1 x HC-06 Wireless Bluetooth Module HC06
