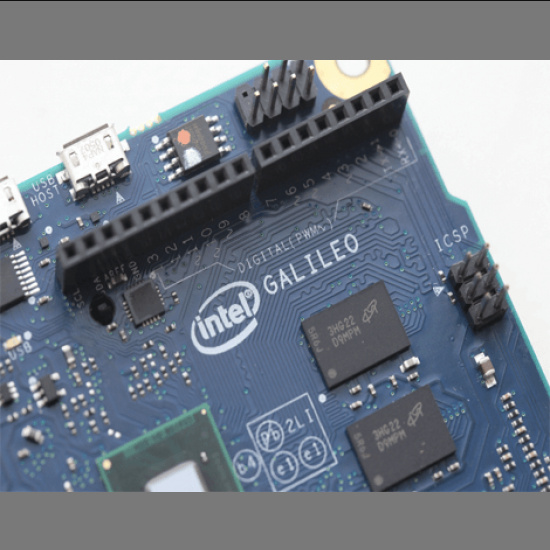

Intel Galileo Gen 2 Development Board - Arduino compatible

The Intel Galileo board?is based on the Intel Quark SoCX1000, a 32-bit Intel Pentium?-class system on a chip (SoC). It is the first board based on Intel architecture designed to be hardware and software pin-compatible with shields designed for the Arduino Uno R3. Intel Galileo?is the first in a line of Arduino-certified development boards designed for the maker and education communities.

The Galileo board is also software-compatible with the Arduino Software Development Environment, which makes getting started a snap. Further In addition to Arduino hardware and software compatibility, the Galileo board has several PC industry standard I/O ports and features to expand native usage and capabilities beyond the Arduino shield ecosystem. A full sized mini-PCI Express slot, 100Mb Ethernet port, Micro-SD slot, RS-232 serial port, USB Hostport, USB Client Port, and 8 MByte NOR flash come standard on the board.

Specification:

• Intel Quark SoC X1000 Application Processor. 400MHz, 32-bit Pentiumclass

• 16 KBytes on-die L1 cache

• 512 KBytes of on-die embedded SRAM

• Simple to program: Single thread, single core, constant speed

• ACPI compatible CPU sleep states supported

• An integrated Real Time Clock (RTC), with an optional 3V coin cell battery for operation between turn on cycles.

• 256MB DDR3 DRAM

• PSoC (programmable system on chip) from Cypress, I2C-controlled I/Oexpander chip

• 10/100 mbit/s Ethernet connector

• USB 2.0 Host connector

• USB 2.0 Client connector

• 8MB Flash

• 10-pin Standard JTAG header for debugging

• I2C, SPI, UART, ICSP be supported

• There are two buttons:

• Reboot button to reboot the processor

• Reset button to reset the sketch and any attached shields

Package Includes:

• 1 x Intel Galileo Gen 2 Development Board - Arduino compatible
