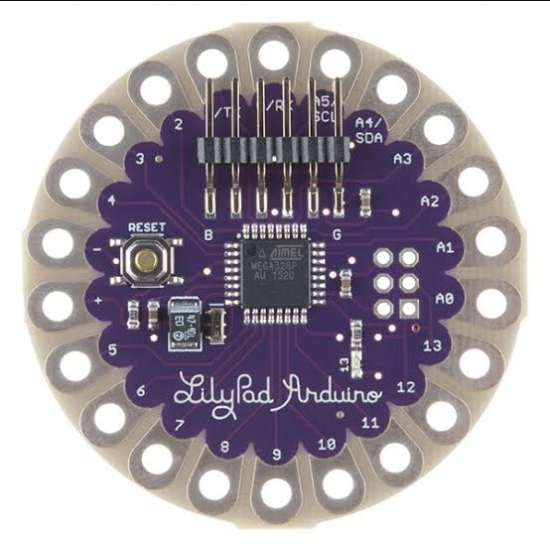

LilyPad Arduino 328 Main Board ATmega328P ATmega328 16M For Arduino

The LilyPad Arduino 328 Main Board is an Arduino-program micro-controller design to be easily integrate into e-textiles and wearable projects. It offers the same functionality you find in other Arduino boards, in a lightweight, round package design to minimize snagging and profile. With wide tabs that can be sewn down and connect with conductive thread.

The LilyPad Arduino consists of an ATmega328 with the Arduino bootloader and a minimum number of external components to keep it as small (and as simple) as possible. This board will run from 2V to 5V and offers large pin-out holes that make it easy to sew and connect. Each of these pins, with the exception of (+) and (-), can control an attache input or output device (like a light, motor, or switch).

LilyPad is a wearable e-textile technology develop by Leah Buechley and cooperatively design by Leah and SparkFun. Each LilyPad was creatively design to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available. They're even washable!

Note: A portion of this sale is given back to Dr. Leah Buechley for continue development and education of e-textiles. Arduino LLC to help fund continue to development of new tools and new IDE features.

Features :

• Board will run from 2V to 5V.
• The latest version of the LilyPad supports automatic reset for even easier programming.
• The back side of the LilyPad is now completely flat!
• We now use a surface mount programming connector to keep the header from poking through.
• This version of the LilyPad now uses the new ATmega328 at 8MHz.
• Arduino 0016 supports the Pro Mini Arduino 328/8MHz/16MHZ.
• Use this setting when using this new LilyPad 328.

Specifications :

Package Includes :

• 1 x LilyPad Arduino 328 Main Board.
