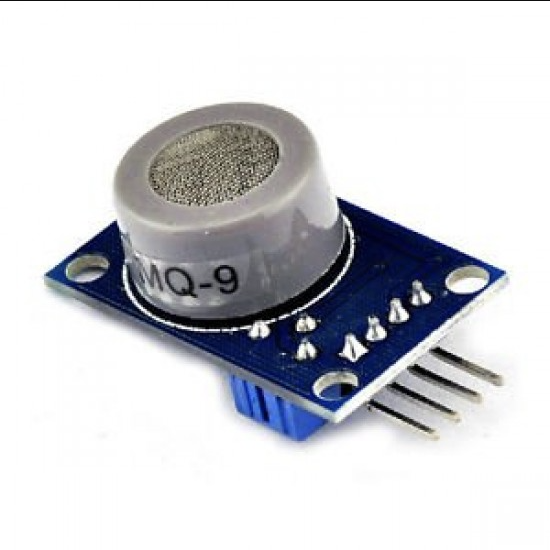

MQ-9 Carbon Monoxide, Methane and LPG Gas Sensor Module

MQ-9 gas sensor module has high sensitivity to Carbon Monoxide, Methane and LPG. Sensitive material of MQ-9 gas sensor is SnO2, which with lower conductivity in clean air.  It makes detection by cycling high and low temperature, and detects CO when low temperature (heated by 1.5V). The sensor’s conductivity is higher along with the gas concentration rising. When temperature rises (heated by 5.0V), it detects Methane, Propane, combustible gas, etc  and cleans the other gases as it adsorbed under low temperature. MQ-9 usually applied in domestic gas leakage detector, industrial gas detector, portable gas detector, etc.

Features :

• Suitable for home or factory gas leakage monitoring devices.
• Have better sensitivity to Carbon Monoxide, Methane and LPG Gas.
• High quality dual-panel design, with power indicator and TTL signal output instructions.
• DO switching signal (TTL) output and AO analog signal output.
• TTL output valid signal is low. (When the output low signal is on, it can be directly connected micro-controller or relay module.)
• Analog output voltage: the higher concentration, the higher voltage.
• Four screw holes, easy positioning.
• Long life and stability, quick response and resume.

Specification :

Wire Connection :

• VCC - positive pole (5V)
• GND - negative pole
• DO - TTL switch signal output
• AO - analog signal output

Package Includes:

• 1 x MQ-9 Carbon Monoxide, Methane and LPG Gas Sensor Module
