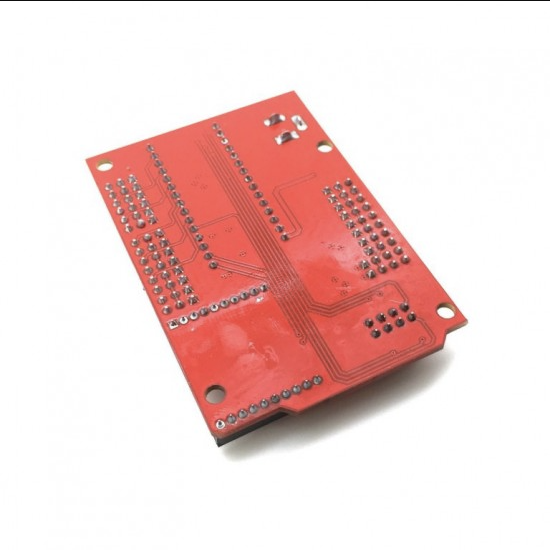

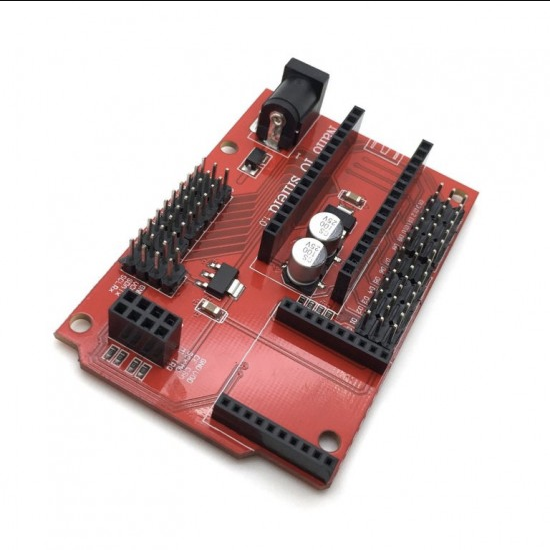

Nano IO Expansion Shield for Arduino NANO 328P with Xbee and Nrf24L01 adapter

This is Nano IO Expansion Shield for Arduino NANO 328P with Xbee and Nrf24L01 adapter. It breaks out all pins as Electronic brick 3 pin interface and a nRF24L01 wireless interface. And it supports 7-12V external power supply.

This extension plate provides all IO leads to 328P for the Arduino Nano. Introduces the electronic building blocks for 3 pin/sensor interface. Provide the external power input terminals, can support external 7-12V input. With 24 l01 XBee socket and plug, expanded the Arduino Nano wireless capabilities.

Nano IO expansion board is Arduino Nano a line board. It leads to the so-called all pins with 3 pin interface as the electronic building blocks, Zigbee XBee series modules and nRF24L01 wireless interfaces. Support the power converter is 7 to 12V.

Pins

• I/O Pin-14 I/O Pin (servo type with GND, power and signal)
• Analog Pin-8 Pins with power output and GND
• PWM Pin-6 Pins
• Expansion Pin-5 I2C Expansion Pins

You can use this module with Arduino Nano and Xbee.

Features :

• All digital and analog pins breakout
• XBee and nRF24L01+ module interface
• External power supply current support
• Compatible pin map for electronic brick

Specifications:

• Output Voltage(V) : 3.3
• Operation Level : Analog, Digital 3.3V, Digital 5V
• Length (mm) : 75
• Width (mm) : 50
• Height (mm) : 15
• Weight (gm) : 30

Package Includes :

• 1 x Nano IO Expansion Shield for Arduino NANO 328P
