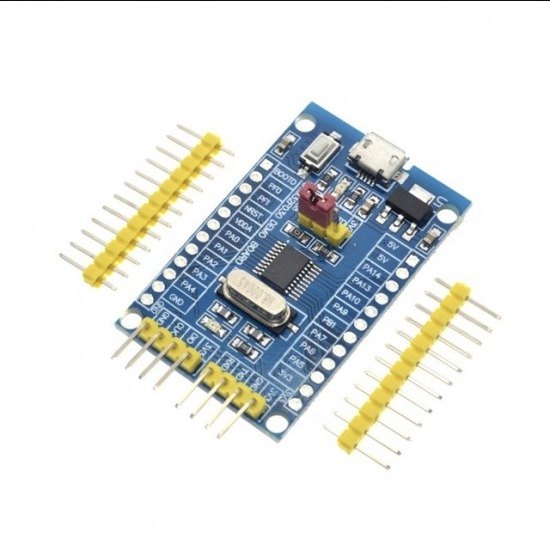

STM32F030F4P6 core board development board core ARM CORTEX-M0

Core: ARM® 32-bit Cortex™-M0 CPU, frequency up to 48 MHz

Memories:

• 16 to 64 Kbytes of Flash memory
• 4 to 8 Kbytes of SRAM with HW parity

Checking:

• CRC calculation unit

Reset and power management

• Voltage range: 2.4 V to 3.6 V
• Power-on/Power down reset (POR/PDR)
• Low power modes: Sleep, Stop, Standby

Clock management

• 4 to 32 MHz crystal oscillator
• 32 kHz oscillator for RTC with calibration
• Internal 8 MHz RC with x6 PLL option
• Internal 40 kHz RC oscillator

Up to 55 fast I/Os

• All mappable on external interrupt vectors
• Up to 36 I/Os with 5 V tolerant capability

5-channel DMA controller

1 x 12-bit, 1.0 μs ADC (up to 16 channels)

• Conversion range: 0 to 3.6 V
• Separate analog supply from 2.4 up to 3.6 V

Up to 10 timers

• One 16-bit 7-channel advanced-control timer for 6 channels PWM output, with deadtime generation and emergency stop
• One 16-bit timer, with up to 4 IC/OC, usable

for IR control decoding

• One 16-bit timer, with 2 IC/OC, 1 OCN, deadtime generation and emergency stop
• Two 16-bit timers, each with IC/OC and

OCN, deadtime generation, emergency stop and modulator gate for IR control

• One 16-bit timer with 1 IC/OC
• One 16-bit basic timer
• Independent and system watchdog timers
• SysTick timer: 24-bit down counter

Calendar RTC with alarm and periodic wake up from Stop/Standby

Communication interfaces

• Up to two I2C interfaces: one supporting

Fast Mode Plus (1 Mbit/s) with 20 mA current sink

• Up to two USARTs supporting master

synchronous SPI and modem control; one with auto baud rate detection

• Up to two SPIs (18 Mbit/s) with 4 to 16

programmable bit frame

Serial wire debug (SWD)

Specifications:

Package Includes:

• 1 x STM32F030F4P6 core board development board core ARM CORTEX-M0
