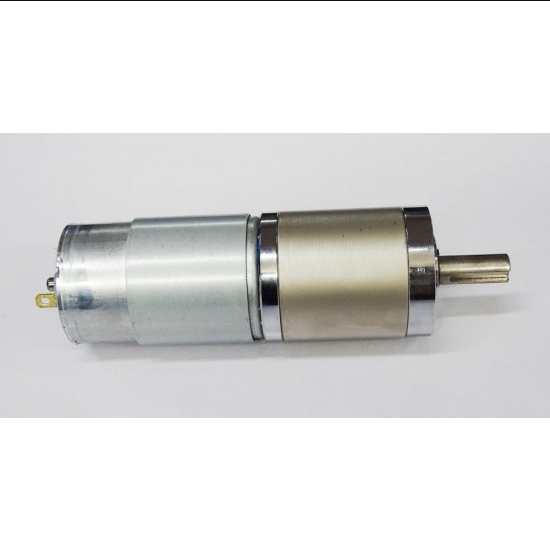

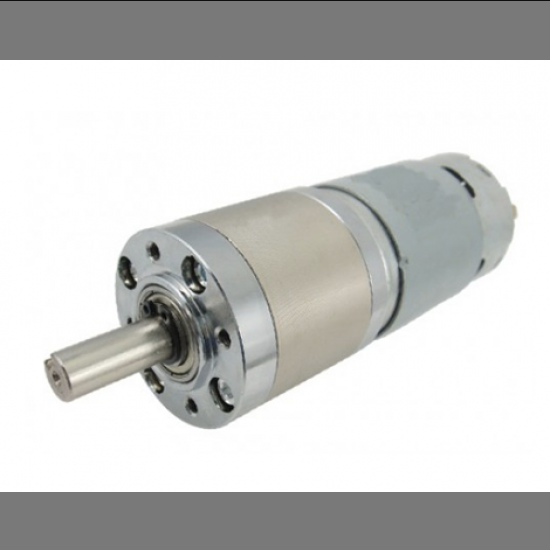

Tauren Planetary Gear DC Motor Series 500 - 12V, 100 RPM

The planetary geared motors are always well known for their low backlash and higher efficiency characteristic to meet the higher expectation. Tauren Planetary Gear DC Motor Series 500 - 12V, 100 RPM has Epicyclic Gear Train motors are very popular amongst our Robotics designer.

This is 12V DC motor which has a gearbox of 50 mm diameter. The planetary type gearbox of this motor has a metal gears and a center shaft. The Shaft of the motor is loaded with bearing for wear resistance and smooth operation.

We highly suggest you this motor for the general purpose automation projects requiring considerable torque range.

Features:

The motor comes with metal gearbox and centered shaft.
Shaft is loaded with bearing for wear resistance
Brushed permanent magnet DC motor
Variable speed and reversible
Planetary Gear Box

Specifications:

Motor Model	Tauren Planetary Series 500
Output (RPM)	100
Rated Torque(kg-cm)	18
Stall Torque(Kg-Cm)	70
Current(A)	600 mA to 14 A (max)
Rated Voltage(V)	12
Motor Diameter(mm)	50
Motor Length(mm)	98
Shaft Diameter (mm)	10
Shaft Length (mm)	27
Weight (gm)	750

Application:

Robotics (Robocon events), Electric Controlled valve, robot, wending machine, automatic actuator, automatic doors, coin refund devices, money detector, soft napkin machine, infusion pumps

Package Includes:
