TowerPro MG958 Metal Gear Servo Motor 20kg High Torque
TowerPro MG958 Metal Gear Servo Motor 20kg High Torque
TowerPro MG958 Metal Gear Servo Motor is best choice if you need higher torque than 15KG. It is stronger and lighter than copper. Excellent performance for RC-cars from 10 to 6th scale truggy and monster and 30cc 60cc airplane.
Features:
- Servo arms & screws included and fit with Futaba servo arm
- CE & RoHS approved
- Servo case: Alloy case in the middle
- Gear Type: Metal gear
- Bearing: Double ball bearing
- Servo wire length: 32cm
- Servo Plug: JR (Fits JR and Futaba)
Specifications:
|
Operating Voltage |
4.8V to 6V |
|
Operating Temperature (°C) |
0 to 55 |
|
Stall Torque @4.8V |
18 kg-cm |
|
Stall Torque @6.6V |
20 kg-cm |
|
Operating Speed @4.8V |
0.18sec/60° |
|
Operating Speed @6.6V |
0.15sec/60° |
|
Current draw (at idle) |
10mA |
|
Current draw (at no load) |
170mA |
|
Stall current draw |
1600mA |
|
Servo wire length |
32 cm |
|
Servo Plug |
JR (Fits JR and Futaba) |
|
Bearing |
Double ball bearing |
|
Gear Type |
Metal gear |
|
Servo case |
Alloy case in the middle |
|
Length (mm) |
54.2 |
|
Width (mm) |
20 |
|
Height (mm) |
47.8 |
|
Weight (gm) |
68 |
Wire Description
- RED – Positive
- Brown – Negative
- Orange – Signal

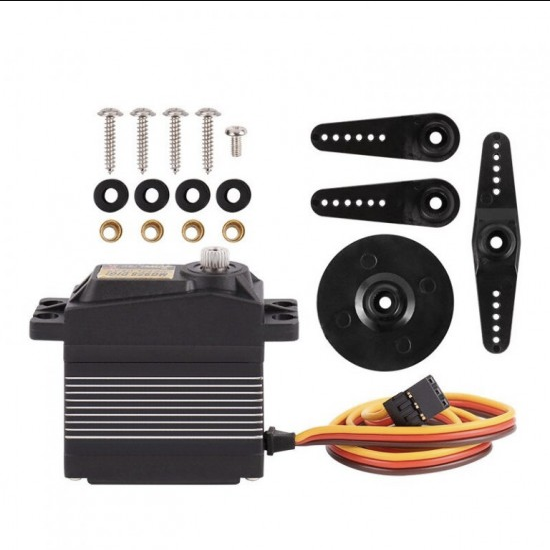

Package Includes:
- 1 x TowerPro MG958 High Torque Metal Gear Servo Motor & accessories parts
