Vibration Sensor Module Normally Opened Type

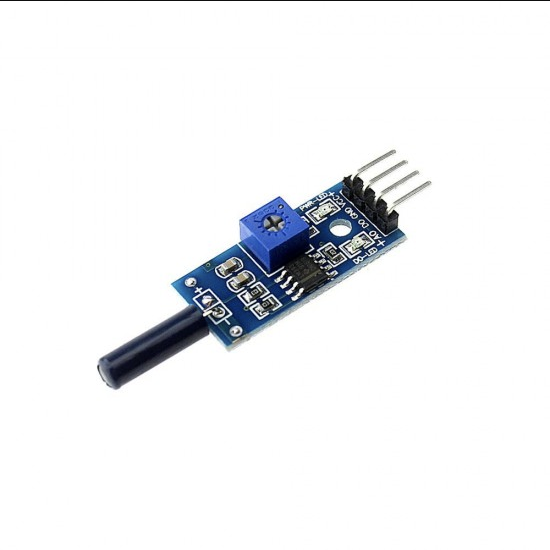

Vibration Sensor Module Normally Opened Type is based on the vibration sensor SW-420 and Comparator LM393 to detect if there is any vibration that beyond the threshold. The threshold can be adjusted by the on-board potentiometer. When this no vibration, this module output logic LOW the signal indicate LED light,And vice versa.

The product when it is not shock, vibrate switch is closed on-State, output output low level, the green indicator light is on; When vibration, vibration switches disconnected moments, output line, the Green led is not lit; the output can be directly connected to the micro controller, by single-chip computer to detect high or low level, to detect whether there is vibration, alarm function

Output can be directly connected to the microcontroller through the microcontroller to detect high and low levels, thus to detect whether there is a vibration of the environment, play an alarming role.

Connection

• VCC: Connect the positive power supply
• GND: Connect to the negative power supply
• DO: The digital signal output

Features :

• Using the company’s high-sensitivity vibration switch, the default with SW-18015P vibration sensor.
• The comparator output, the signal clean, good waveform, driving ability, more than 15mA
• With a fixed bolt hole, easy to install.
• The use of wide voltage LM393 comparator.

Specifications:

• the use of the company's production of SW-420 normally closed type vibration sensors.
• compactor output signal clean wave well, driving ability,
• 15mA rated voltage
• 3.3V-5V output
• digital switching output (0 and 1)
• a bolt-hole for easy installation small Board
• PCB dimensions: 32 mm x 14 mm using wide LM393 voltage compactor

Applications:

• For a variety of shocks triggering, theft alarm, smart car, an earthquake alarm, motorcycle alarm.

Package Includes :

• 1 x Normally open vibration sensor module.
