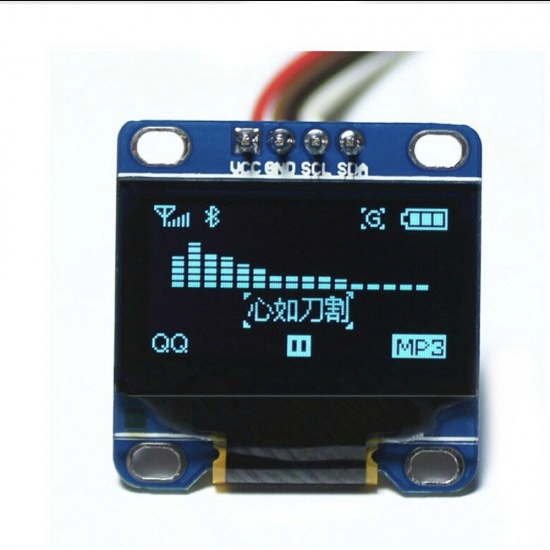

0.96 Inch 4 Pin OLED Display SPI/I2C Module - 128x64 (Blue)

This is a 0.96 Inch 4 Pin OLED Display SPI/I2C Module - 128x64 (Blue). The display module can be interfaced with any microcontroller using SPI/IIC protocols. It is having a resolution of 128x64. The package includes display board,display, 4 pin male header for board.

OLED monochrome 128×64 is a dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.

Interface pin for 4 PIN 128×64 OLED

• VCC: 3.3 volts – 5 Volts
• GND: Ground
• SCL: Serial Clock
• SDA: Serial Data

 Features

• Super High Brightness (Adjustable)
• Super High Contrast (Adjustable)
• Embedded Driver/Controller
• Display size: 0.96″
• Resolution radio:128 x 64
• Interface modes: I2C/IIC
• working voltage: 3.3V
• Control Chip: SSD1306
• Only Need 2 I/O Port to Control
• Full Compatible Arduino, 51

Specifications:

Package Includes:

• 1 x 0.96 Inch I2C IIC 4pin OLED Display Module BLUE
