0.96 inch OLED Display Module SPI/I2C 128x64 - 6 Pin (Yellow Blue)

0.96 inch OLED Display Module SPI/I2C 128x64 - 6 Pin (Yellow Blue) is a display can be interfaced with any microcontroller using SPI/IIC protocols. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

Features:

• Better resolution and viewing angle than traditional LEDs
• Support for bit map images
• Bright and crisp display under various lighting conditions
• Only Need 2 I/O Port to Control
• Full Compatible with Arduino

Specifications:

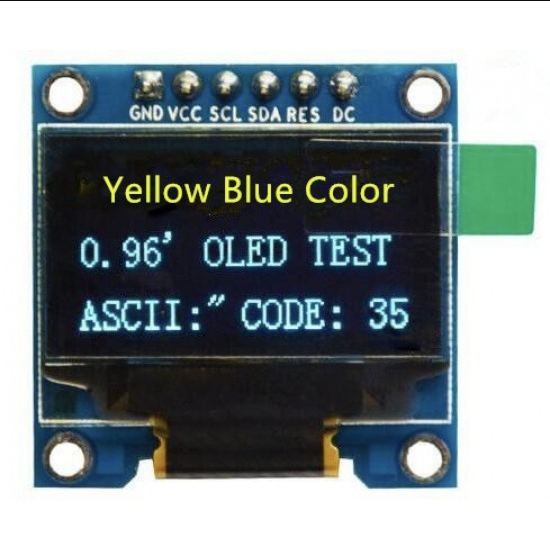

Pin Description:

• GND: power ground.
• VCC: 3.3V or 5V power supply.
• SCL: CLK Clock.
• SDA: MOSI data.
• RST: Reset.
• DC: Data / Command.

Package Includes:

• 1 x 0.96" OLED Display Module - SPI/I2C - 128x64 - 6 Pin (Yellow Blue)
