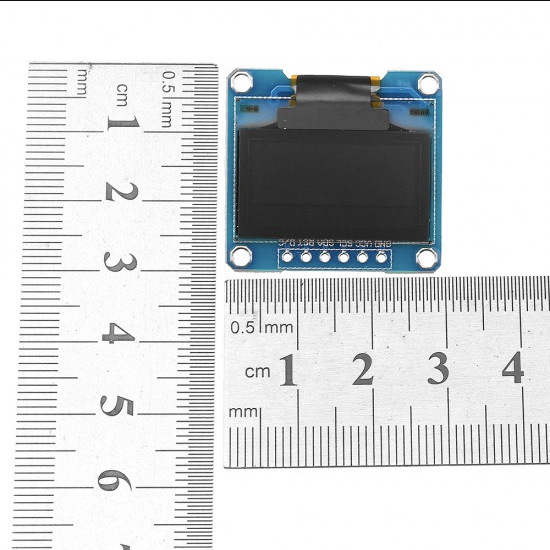

0.96 inch OLED Blue Display Module SPI/I2C 128x64 - 6 Pin

0.96 inch OLED Blue Display Module SPI/I2C 128x64 - 6 Pin can be interfaced with any microcontroller using SPI/I2C protocols. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

OLEDs basic structure consists of organic materials positioned between the cathode and the anode, which is composed of electric conductive transparent Indium Tin Oxide (ITO). The organic materials compose a multi-layered thin film, which includes the Hole Transporting Layer (HTL), Emission Layer (EML) and the Electron Transporting Layer (ETL). By applying the appropriate electric voltage, holes and electrons are injected into the EML from the anode and the cathode, respectively. The holes and electrons combine inside the EML to form excitons, after which electro luminescence occurs. The transfer material, emission layer material and choice of electrode are the key factors that determine the quality of OLED components.

Features:

• Better resolution and viewing angle than traditional LEDs
• Support for bit map images
• Bright and crisp display under various lighting conditions
• Only Need 2 I/O Port to Control
• Full Compatible with Arduino

Specifications:

Pin Description:

• GND: power ground.
• VCC: 3.3V or 5V power supply.
• SCL: CLK Clock.
• SDA: MOSI data.
• RST: Reset.
• DC: Data / Command.

Package Includes:

• 1 x 0.96" OLED Display Module - SPI/I2C - 128x64 - 6 Pin (Blue)
