10000W Super Power Thyristor Electronic Voltage Regulator, Adjust Light Speed Temperature

10000W Super Power Thyristor Electronic Voltage Regulator, Adjust Light Speed Temperature has new two-way large power silicon controlled rectifier and the current can be up to 80A, which is a good solution to over-current of electric stove wire caused by low resistance during cooling. It can easily adjust the output voltage on a scale of 0-100% (nonlinear) to power electric device. It has been designed with large and thick heat sink that would enhance heat dissipation. This voltage regulator is adjusted with button which is much more stable than potentiometer. Voltage regulator has wave voltage absorbing circuit and effective protects large power silicon controlled rectifier, longer service life and more durable.

It is suitable for water heater heat transfer, lighting dimming, small motor speed, electric iron thermostat and so on.

Features:

• Using the new two-way high-power SCR, max current up to 80A.
• The voltage regulator with the peak voltage absorption circuit effectively protects the high-power SCR and has a longer service life.
• Built-in heat sink, thickened to increase the heat sink, good heat dissipation, easy to install.
• 57A high current terminal block, simple wiring, strong button adjustment stability.
• Omron original tact switch, Fairchild original photoelectric coupler, all metal film resistors are stable and durable.
• The value is automatically saved. After power-on, it will automatically start to the last adjusted value.

Specifications:

Application:

• Using the new two-way high-power SCR, Max current up to 80A, a good solution to the problem of over-current electric wire in the case of cooling is too small to cause the resistance.
• You can easily adjust the output voltage mains in any adjustment 0-100% (220V 100 adjustment points, non--), for the use of electrical appliances. Such as: electric furnace, water heater heating, lighting dimming, small motor speed control, electric iron temperature adjustment, etc. Thereby achieving the effects of dimming, temperature regulation and pressure regulation.
• It can be used in large appliances with an electric power of less than 10,000 watts. Since the power has been great, so the general home appliances or small factories enough to use.(Inductive or capacitive load power should be reduced, this regulator is equipped with two-way high-power SCR, can be used without any components, it is very convenient and practical.)

Notes:

• 10000W products are not in proportion to the regulator, so called non-,digits show 0-100. When digit show 1, voltage about 20V,the higher voltage, the more careful between the level and the level classification.
• Level 180V-220V, voltage about 1-2V, 0-180V voltage is higher, level between level is about 20V, the second level is about 10V, the third level is about 5V, the higher voltage, the more careful level classification.
• AC input, AC output, output voltage is lower than(or equal to) input voltage; voltage can be adjusted only when connected to load; mainly used for resistive load.
• It can not replace electric bicycles' battery charger, nor drive electric appliances which use switch power supply (such as 110V TV, speaker, refrigerator, air conditioner, rice cooker with a computer), and cannot drive induction cooker, energy saving lamp.

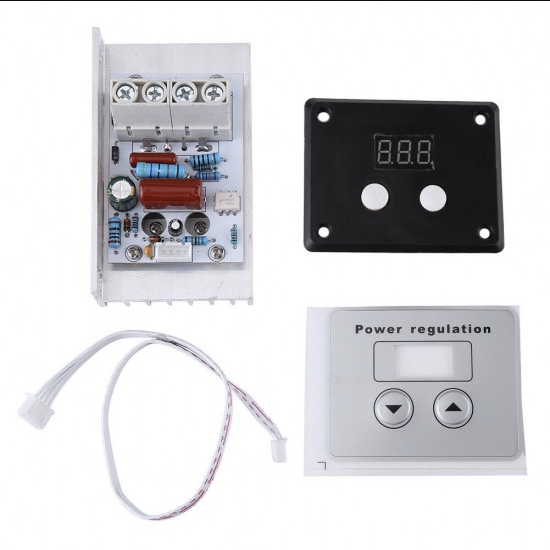

Package includes:

• 1 x SCR Controller
• 1 x ABS Panel
• 1 x Panel Sticker
• 1 x Cable
