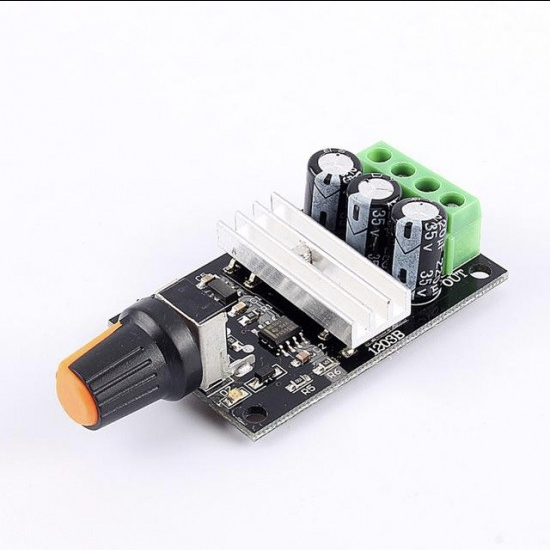

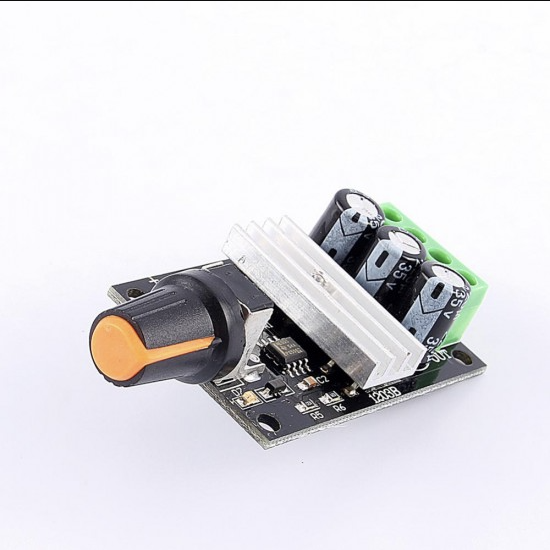

PWM DC 6V 12V 24V 28V 3A Motor Speed Regulator Control Switch

PWM DC 6V to 28V 3A Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%. The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.

Features:

• Speed of a motor is fully adjustable
• DC 6V 12V 24V 28V Supported
• The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.
• PWM to vary the speed of DC motors.
• Terminal strip for power & Motor connections.
• Power-On LED indicator

Specification:

Pinouts:

• Motor+: Motor Positive Terminal
• Motor-: Motor Negative terminal
• Power+: DC 6V - 28V
• Power-: Gnd

Operating instruction:

• Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram.
• Connect a voltage of 6V - 28V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse inline with the positive supply in order to protect the circuit from any possible short circuits.
• You can now control the speed of the motor through potentiometer.

Note:

• Before you attempting to wire the controller, make sure power is off.
• Do not reverse positive and negative power loads, this will damage the controller. Also not suitable for AC motors.

Package included:

• 1 x DC 6V - 28V 3A PWM Motor Speed Variable Regulator Controller Switch
