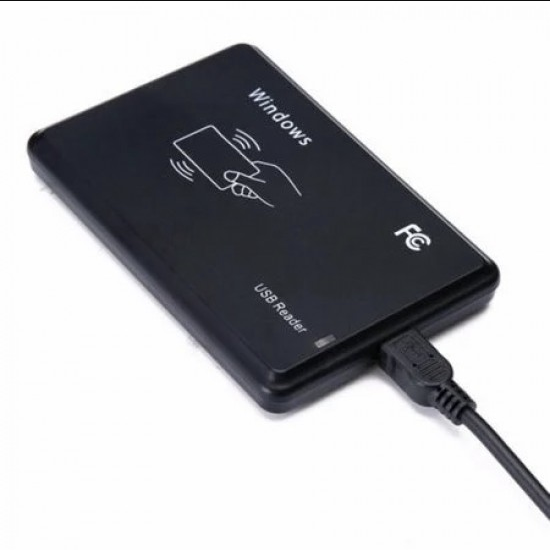

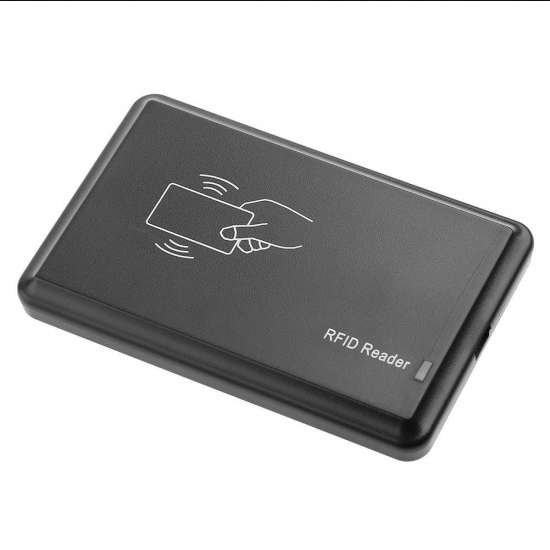

13.56MHz USB Proximity Sensor Smart RFID IC Card Reader
13.56MHz USB Proximity Sensor Smart RFID IC Card Reader
13.56MHz USB Proximity Sensor Smart RFID IC Card Reader is an RFID 13.56MHz IC reader which can read distance up to 8 cm. It is widely used for RFID radio frequency identification system and projects, such as automated parking management, personal identification and production access control.
This RFID card reader can read RFID card serial number and output to your computer according to the specified format, then management software derives many more functions.
Features:
- USB Plug and Play.
- RFID reader 0-8cm Reading Distance.
- Win8/7/XP/Android Supported.
- S50/S70 Card Supported.
- OTG Phone Connection.
- Built-in buzzer and LED for identification.
- Widely used at apartment, office, supermarket and other places.
- Supporting System: Windows87XP982000 CEMENT, LINUX, Vista
Specifications:
|
Frequency |
13.56MHz |
|
Baud Rate |
9600 |
|
Reading time |
<0.5s |
|
Power Supply |
+5V DC |
|
Consume Current |
70mA |
|
USB Cable Length |
1.4m |
|
Dimensions (LxWxH)mm |
95 x 60 x 10 |
|
Supporting Cards |
For Mifare S50, S70 |
|
Protocol |
14443A |
Installation Steps:
- Connect with a computer through the USB cable inside.
- Open notepad or a word document.
- Put the card on the top of the reader.
- The document will output card number automatically.
Package Includes:
- 1 x 13.56MHz USB Proximity Sensor Smart RFID IC Card Reader
- 1 x USB Cable
Note: No RFID card or Tag are included in the package you have to buy it separately
