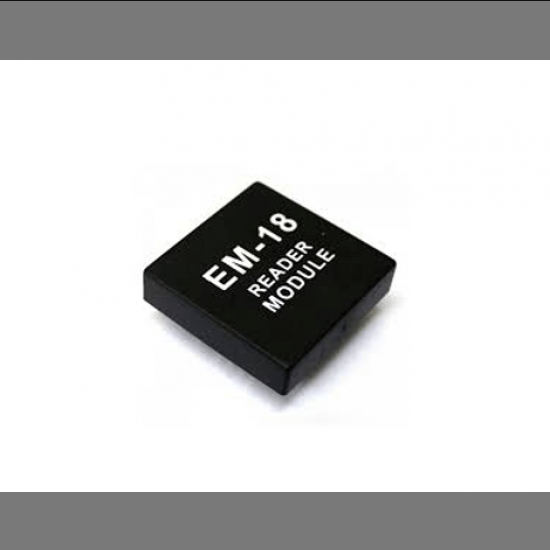

RFID Reader Module 125 KHz or RFID Reader EM18

This is a great little RFID Reader Module similar to the ID models(the difference being no silicone protection on the back). If you need an inexpensive way to get started with RFID, this is a great little module. Just power the module, and it will read any RFID card within range. It will output the cards ID in a serial string, which can easily be read by any micro-controller. The spacing on the pins is 2.54 mm, which means the module will directly fit on a breadboard. This RFID Reader Module 125 Khz is early to use. It is Low Cost. It gives Serial and Wieg and 26 Output.

Specifications:

• Voltage: 5 Vdc

• Current: <50ma

• Operating Frequency: 125 khz

• Read Distance: 10 cm

• Size: 32 mm (length), 32 mm (width), 8 mm (height)
