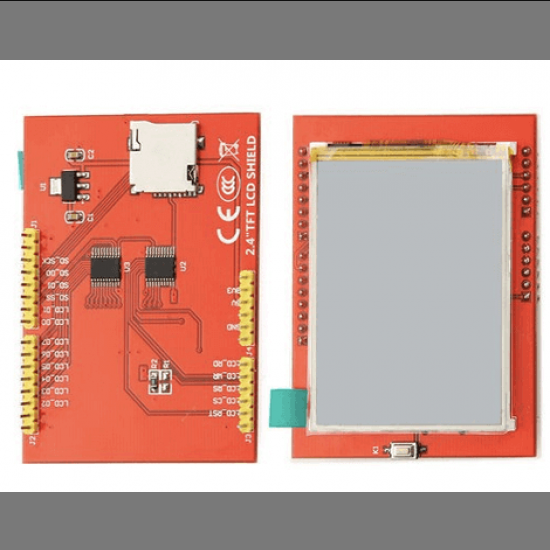

2.4 Inch TFT LCD Touch Screen LCD Display Module for Arduino

The 2.4 Inch TFT LCD Touch Screen LCD Display Module for Arduino is a beautiful large touchscreen display shield with built in microSD card connection. The LCD has excellent vivid color contrast. This TFT display is big (2.4″ diagonal) bright (4 white-LED backlight) and colorful (18-bit 262,000 different shades). It has 240×320 pixels with individual pixel control which is way more resolution than a black and white 128×64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

Features:

• 2.4 inch LCD TFT display
• Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control
• Colorful, 18-bit 262,000 different shades
• 4-wire resistive touchscreen
• 240 x 320 resolution
• 8 bit digital interface, plus 4 control lines
• Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD
• 5V compatible, use with 3.3V or 5V logic
• Size: 71 x 52 x 13mm
• Weight : 30 gram

Package Includes:

• 1 x 2.4 inch TFT LCD Touch Display Shield
• 1 x Stylus (Optional- Subjected to Availability)

Useful Links:

• Arduino Library
