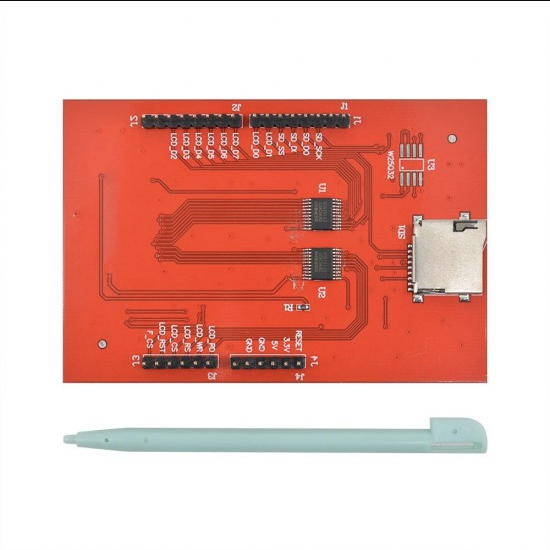

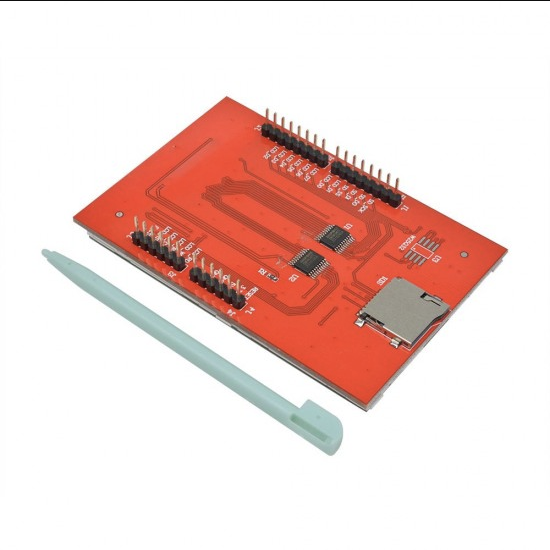

3.5 inch TFT Touch Screen Display for Arduino
3.5 inch TFT Touch Screen Display for Arduino is big (3.5″ diagonal) bright and colorful! 480×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display, and double our 2.8″ TFT.
As a bonus, this display has a resistive touchscreen sensor allowing you to control your application simply by touching any area of the screen. This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller.
Features :
- 3.5-inch color screen,support 65K color display,display rich colors
- 480X320 resolution, optional touch function
- Easy to expand the experiment with SD card slot
- Provide a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
Specifications:
|
Name |
Parameter |
|
Display Color |
RGB 65K color |
|
Screen Size |
3.5(inch) |
|
Type |
TFT |
|
Driver IC |
ILI9488, R61581 |
|
Resolution |
480*320 (Pixel) |
|
Module Interface |
Parallel interface |
|
Active Area (AA area) |
48.96x73.44(mm) |
|
Module PCB Size |
56.34x98(mm) |
|
Operating Temperature |
-20℃~60℃ |
|
Storage Temperature |
-30℃~70℃ |
|
VCC power voltage |
3.3V~5V |
|
Logic IO port voltage |
3.3V(TTL) |
|
Rough Weight(Package containing) |
No touch: 45 (g) / With touch: 57 (g) |
Package Includes :
- 1 x 3.5″ Inch TFT Touch Screen Module
User Manual and Datasheets:
