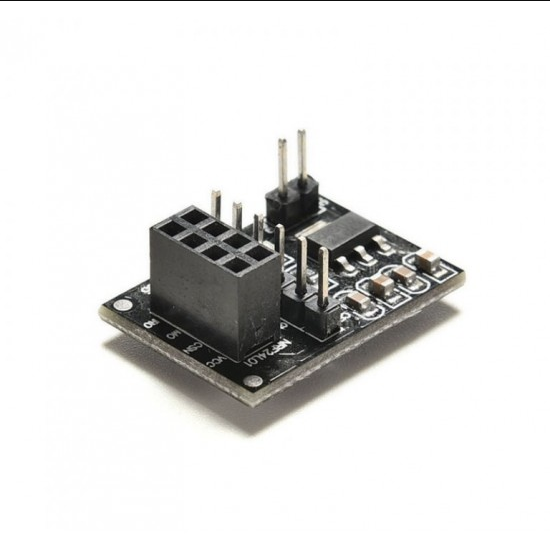

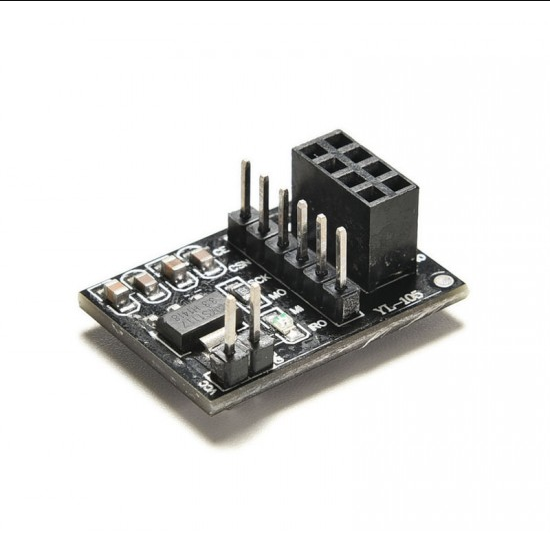

3.3V Adapter Board for 24L01 Wireless Module

This 3.3V VCC Adapter Board for NRF24L01 Wireless Transceiver Module enables you to use NRF24L01 type transceivers on 5V systems like Arduino.

It regulates the 3.3V input to 1.9~3.6V DC and incorporates bypass capacitors for reliable operation. The NRF24L01 utilizes Enhanced ShockBurst (ESB) protocol to support two-way data packet communication with packet buffering, packet acknowledgement and automatic retransmission of lost packets.

Features:

• It can be used with NRF24L01 wireless module
• Add core nRF24L01+ Breakout Adapter with onboard 3.3V Regulator
• Onboard 3.3V voltage regulator accepts your Arduino +5V supply and provides 3.3V for the attached nRF24L01+ module
• Allows for easy connection to nRF24L01+ modules
• Small power on SMD LED indicator
• On-Board Voltage Regulator:
• Voltage Regulator Input Voltage (connected to VCC): 4.8V to 12V
• Voltage Regulator Input Voltage Max: 15V (we recommend staying below 12V)

Specifications:

Package Includes:

• 1 x 3.3V Adapter Board for 24L01 Wireless Module
