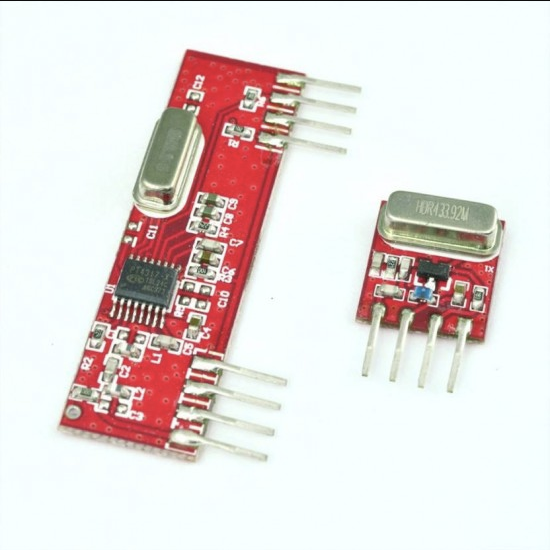

RF ASK Module Wireless Transmitter + Receiver Pair 433 / 434 MHz

The Receiver is an ASK Hybrid receiver module. It is a effective low cost solution for using 433 / 434 MHz. The Transmitter is an ASK hybrid transmitter module. It is designed by the saw resonator, with an effective low cost, small size and simple to use for designing.

• Low Power Consumption
• Easy For Application
• Range in open space (Standard Conditions) : 500 Meters (with Antenna) / 100-200 Meters (without Antenna)

RF ASK Transmitter

• Frequency Range : 433.92 MHz
• Supply Voltage : 3V ~ 12V
• OutPut Power : 4 ~ 12 dBm
• Standard Operating Voltage : 5V

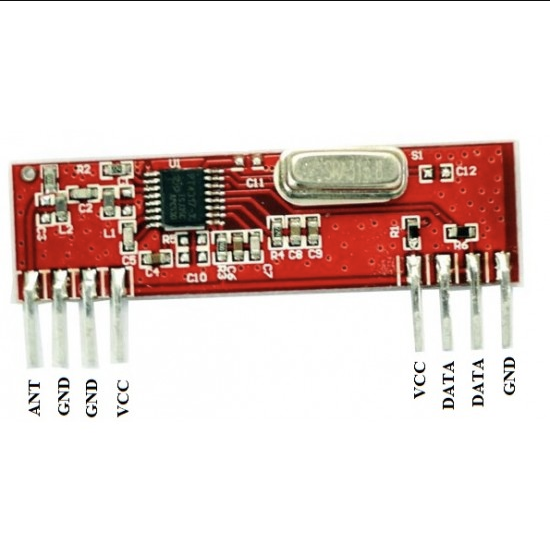

RF ASK Receiver

• Receiver Frequency : 433.92 MHz
• Typical Sensitivity : 105 dBm
• Supply Voltage : 3V ~ 12V
• Supply Current : 3.5 mA
• Standard Operating Voltage : 5V

Applications

• Remote Controls
• Automation System
• Wireless Security System
• Sensor Reporting
• Car Security System
• Remote Keyless Entry
• Supports All Wireless Applications using 8051/AVR/PIC/ARM Microcontrollers (Using HT12E - HT12D Pair)

Package Includes:

• 1 x RF ASK Transmitter
• 1 x RF ASK Receiver
