Combo Kit - MY1016Z3 350W Motor for Ebike, Electric Bicycle Kit

We always understands the inventive mind and the thrill of creating something all your own among students. That is why we are proud to present the 24 volt 350W watt MY1016Z gear reduction motor complete with a 9 tooth 1/8" bicycle chain sprocket.

This motor is great for those wanting to make their own custom electric vehicle, whether it's a scooter, electric bicycle or something the world isn't even ready for. This electric motor with gear reduction produces more low-end torque than your standard motor. It is normally found in the better quality quads and scooters on the market and is classed as a mid-range combination.

This motor is capable of rotation in either the clockwise or counter clockwise direction by reversing the motor's power wires.

They are quite powerful for their small size and extremely reliable. We've sold these for so many different applications that they were never designed for, but the robustness of the build makes them just go and go and go etc!

Try this Combo kit of MY1016Z3 350W motor which includes all parts require to convert your bicycle to an stylish e-vehicle.

Features :

• Model: MY1016Z3
• Voltage: 24 volts DC
• Power: 350 watt
• Speed (after Reduction): 324 RPM
• Torque: 11 N.m (110 kg.cm)
• Stall Torque: 55 N.m (550 kg.cm)
• Weight: 2.98 Kg.
• Current: 19.2 Amp Max.
• Permanent Magnet DC Motor.
• Direct Drive (No Free Spooling)
• Suitable for Forward and Reverse Operations
• Base Mount Model
• 9 Tooth Sprocket for 1/2" x 1/8" Pitch Chain

Packing Details -

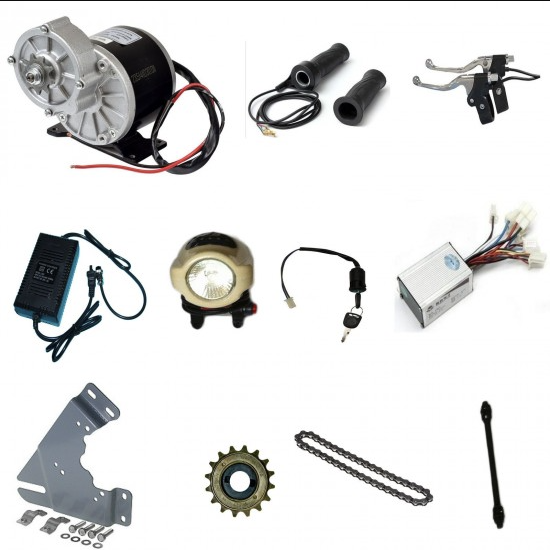

The combo motor kit includes:

1. 1pcs x MY1016Z3 DC 24V 350W motor.
2. 1pcs x Motor controller.
3. 1pcs x Chain.
4. 1pcs x Freewheel.
5. 1pcs x Freewheel adapter.
6. 1pcs x Mounting plate with bolts.
7. 1pcs x Throttle handle & Brake lever.
8. 1pcs x Headlight.
9. 1pcs x Switch & key.
10. 1pcs x 18cm axis.

Please note - This kit does not include batteries and charger.
