MY1016Z3 24V 350W 300RPM Geared DC Motor, Motor Controller, Throttle - DIY Electric Bicycle Kit
MY1016Z3 24V 350W 300RPM Geared DC Motor, Motor Controller, Throttle - DIY Electric Bicycle Kit
MY1016Z3 24V 350W 300RPM Geared DC Motor, Motor Controller, Throttle - DIY Electric Bicycle Kit is great for those wanting to make their own custom electric vehicle, whether it's a scooter, electric bicycle or something the world isn't even ready for. This electric motor with gear reduction produces more low-end torque than your standard motor.
They are quite powerful for their small size and extremely reliable. We've sold these for so many different applications that they were never designed for, but the robustness of the build makes them just go and go and go!
You wont find these in the cheap kiddie carts, but you will on the higher quality or more expensive models!
Be aware if you are swapping out a 250W motor that this 350W motor draws more current, so make sure that your existing controller is capable of driving it!
Specifications of MY1016Z3 Motor:
|
Model |
MY1016Z3 |
|
Operating Voltage |
24 volts DC |
|
Operating Power |
350 watt |
|
Rated Current(A) |
19.2 amp |
|
Rated Speed(Base Motor) |
3200 RPM |
|
Rated Speed(After Reduction) |
300 RPM |
|
Rated Torque |
220 kg.cm (22 N.m) |
|
Stall Torque(Kg-Cm) |
110 kg.cm(11 N.m) |
|
Length of Cable |
0.5 Meter |
|
Sprocket |
9 teeth |
|
Pitch(inch) |
1/2 |
|
Weight (Kg) |
2.98 |
|
Gearbox |
Yes |

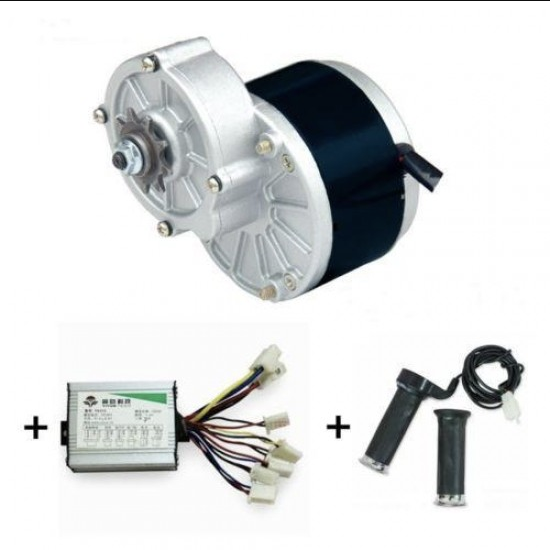

Packing list:
- 1 x MY1016Z3 350W 24V Geared DC Motor
- 1 x 24V 350W Motor Controller
- 1 x Throttle set
