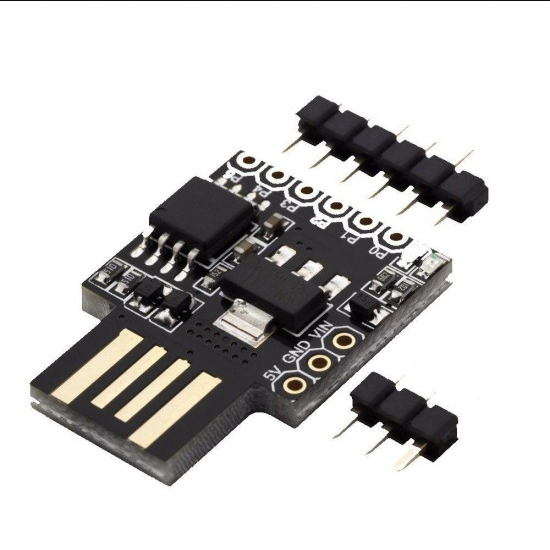

Digispark ATTiny85 USB Development Board

The ATtiny85 based mini development board is similar to the Arduino, but cheaper and smaller. With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, this ATTINY85 USB Development Board is a great way to jump into micro-controller electronics.

ATtiny85 based microcontroller development board come with the USB interface. Coding is similar to Arduino, and it uses the familiar Arduino IDE for development. This is a digispark clone.

It has 6 port with several functions. Depending on the programming (with Arduino IDE) can it have 6 digital I/O, 4 analog inputs or 3 PWM outputs.

Features:

• Support for the Arduino IDE 1.0 + (OSX/Windows/Linux)
• Built – in USB and serial was debugging)
• The I2C and SPI (vis USI)
• The Power LED and the Test/Status leds

Specifications:

• Power via USB or External Source - 5v or 7-35v (automatic selection)
• The On – board, 150 ma 5 v Regulator
• 6 I/O Pins (2 inform the for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
• 8 k Flash Memory (about 6 k after bootloader)
• PWM on 3 pins (more possible with Software PWM)
• The ADC on 4 pins
• Dimension (mm): 26 x 18 x 5
• Weight: 4 g

Package Includes:

• 1 x ATTINY85 USB Development Board
