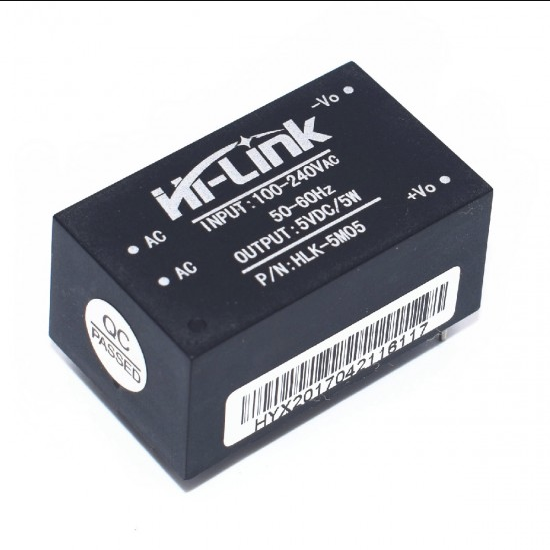

Hi-Link AC-DC Power Module HLK-5M05 230V to 5V /5W

Hi-Link AC-DC Power Module HLK-5M05 230V to 5V /5W Ultra-Compact Power Module is a custom-designed power modules with high efficiency and small volume,made by Hi-link Electronics company.

Features:

• Meet UL, CE requirements,
• Ultra-thin, ultra-small
• All voltage input (90~240V AC)
• Low ripple and low noise
• Output overload and short circuit protection
• High efficiency, high power density
• The product is designed to meet the requirements of EMC and Safety Test
• Low power consumption, environmental protection, no-load loss <0.1W
• 100% load aging and testing

Environmental Conditions:

• Operation Temperature : -20 to +60 ℃
• Store Temperature : -40 to +80 ℃
• Relative humidity : 5 to 95 %
• Cooling way : Cooling by radiation
• Atmospheric pressure : 80 to 106 Kpa
• Sea level elevation : ≤2000 m
• Vibration : Vibration coefficient 10~500Hz, 2G 10 min./1 cycle, 60min. each along X,Y,Z axes

Advantages:

There are many advantages for these module, such as low temperature rise, low power, high efficiency, high reliability, high security isolation etc. It is widely used in smart home, automation and control, communication equipment, instrumentation and other industries.

Package Includes:

• 1 x HLK-5M05 230V to 5V /5W Switch Power Supply Module
