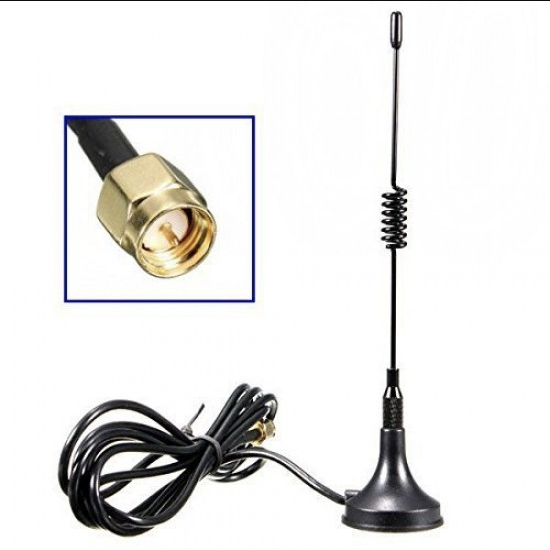

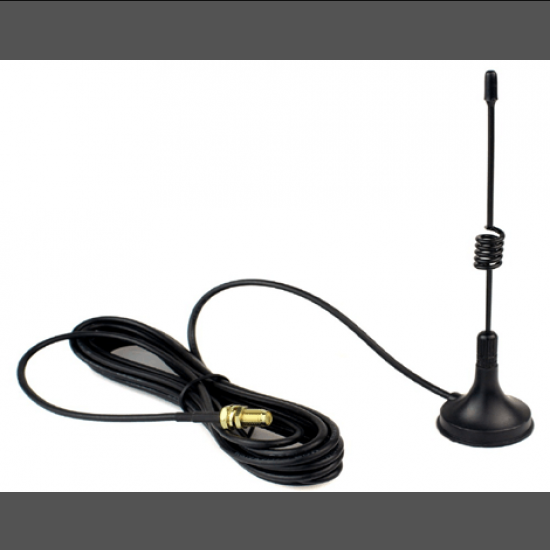

GSM 3dBi Magnetic Spring Antenna 2400 – 2483 MHz

This is Magnetic Mount Spring Antenna having a frequency of  2400 – 2483 MHz and gain of 3dBi. This is very helpful for signal boosting. Magnetic mount antennas are commonly used for car and truck applications. The antenna’s magnetic base sticks securely to the metal of the vehicle. The metal surface of the car acts as a ground plane to bounce the signal. Since magnetic mount antennas require a ground plane, they should be mounted on metal.

It provides high gain of 3 dBi and suitable for tough terrain and open air environment applications. Input impedance of this antenna is 50 ohm. It comes with magnetic base. The antenna is structure compact and convenient for easy installation. Commonly used in GSM repeater, GSM sensor, GSM module& GSM modems.

Electrical Specifications:

• Frequency range - 2400MHz- 2500MHz,
• V.S.W.R < 2.0
• Gain - dBi 3.0
• Polarization -  Vertical
• Maximum Input Power- 10W
• HPBW - H: 3600; V: 400

Mechanical specifications:

• Connector SMA male

• 3 Meter Wire Length

• Random material : Metal

• Random color : black

• Operation Temperature- -30~60 DegC

• Humidity-% 5~95

• Magnetic Base.

Package Includes:

• 1 x GSM 3dBi Magnetic Spring Antenna 2400 – 2483 MHz
