LJ12A3-4-Z-BY-PNP DC 6-36V Inductive 4mm NPN-NO Proximity Sensor

Distance or Proximity Sensors

LJ12A3-4-Z-BY-PNP DC 6-36V Inductive 4mm NPN-NO Proximity Sensor

star star star star star

0 rating

Just for you!

SKU: Anil337-2

MRP: Rs. 297.70

Rs. 239.00 (Incl. Tax)

Save Rs. 58.70 (20% off)

Rs. 215.10 / pack of 1 = Rs. 215.10 per piece

Pay later available

on orders above ₹300

View options

Quantity

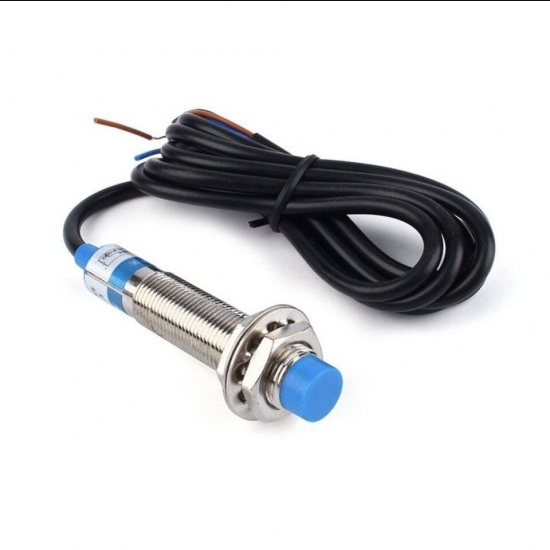

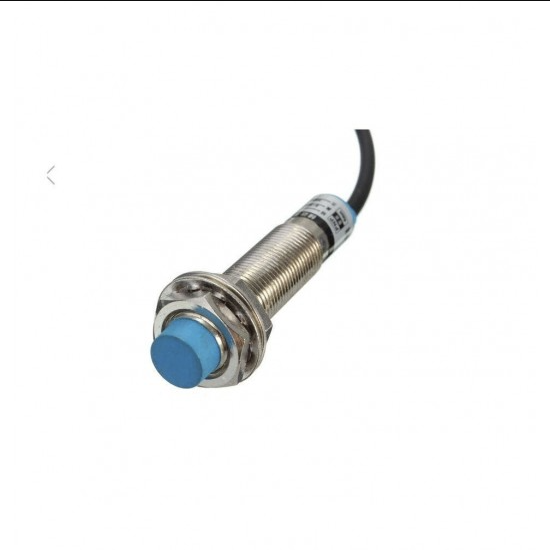

LJ12A3-4-Z-BY-PNP DC 6-36V Inductive 4mm NPN-NO Proximity Sensor

This LJ12A3-4-Z-BY-PNP DC 6-36V Inductive 4mm NPN-NO Proximity Sensor Switch is a component widely used in the automatic control industry for detecting, controlling, and non-contact switching. When the proximity switch is close to some target object, it will send out a control signal.

When the metal approaches near-proximity switch sensing area, an Edy Current is induced in metal. Which in turn disturbs the magnetic field produced by the Inductive Proximity Sensor. This change is sensed by the sensor.

This inductive proximity switches can be non-contact, no pressure, no spark, quickly issued the electrical command. Accurately reflect the position and stroke movement mechanism. Positioning accuracy, operating frequency, service life. Easy to install and suitable for harsh environments.

This 4mm proximity sensor can detect a variety of metals, miniature size, long life, low price, shielded type installation, anti-interference ability, 1mm detection distance, using for precise positioning of molds, precision machine tools, and robots.

Note: The product is available in blue or yellow colors, so while shipping you may get any one of them.

Features :

Red LED checks the state of the proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Total Length of cylinder: 62mm.
Thread length: 40mm.
Outer (Theard) Diameter: M12
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC
Can replace small switches and limit switches

Specifications:

Model	LJ12A3-4-Z-BY PNP-NO Switch
Operating Voltage	6 ~ 36 VDC
Output Type	NPN Normally Open Three-line
Detection object	Metal Objects
Detection distance	4 mm
Output Current	300 mA
Working temperature (°C)	-25 ~ +70, ±15%
Cable Length	Approx 1.1 m
Material	Metal and plastic
Dimensions	12 mm Screw Diameter
Weight (gm)	46
