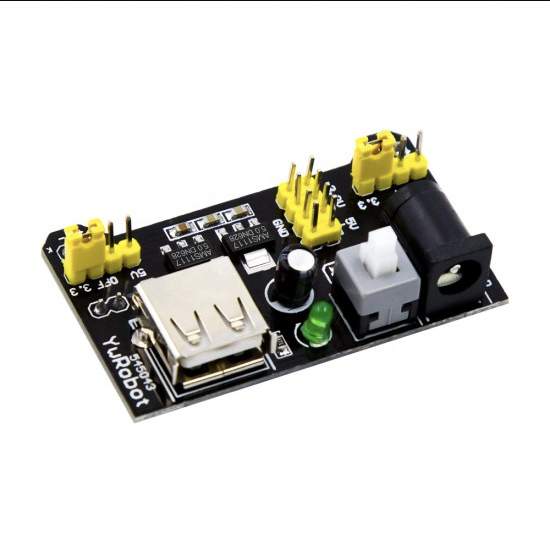

MB102 Breadboard Power Supply Module 3.3V/5V

This is a MB102 Breadboard Power Supply Module 3.3V/5V  which provides a dual 5 V and 3.3 V power rails and has a multi-purpose female USB socket.

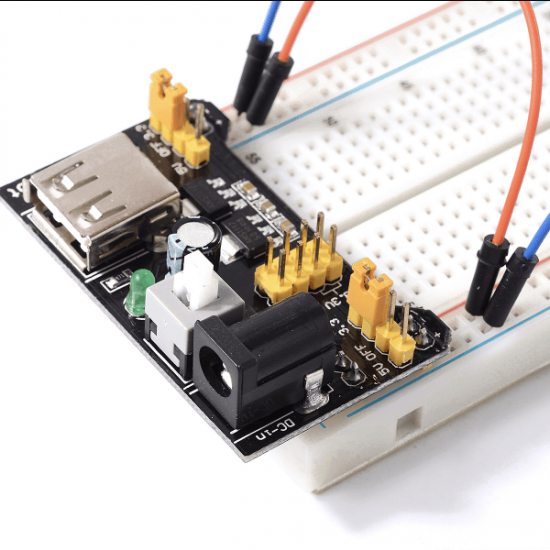

The MB102 Breadboard Power Supply Module securely fits in a standard 400 or 800 tie points breadboard and it also features reverse polarity protection, the module can take 6.5V to 12V input and can produce 3.3V and +5V.

The module can also output 5V on USB connector or input through the USB connector. It’s a must-have product for experimenters those have to test/prototype electronic circuits on the breadboard.

Features :

• Breadboard power supply module, compatible with 5V, 3.3V.
• Apply to MB102 breadboard
• Fluctuation two road independent control can switch over to 0 V, 3.3 V, 5 V
• On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
• Power Supply comes with On/Off Switch
• Green LED power indication
• Built-in protection against short-circuit through power limiting circuitry

Specification:

Package Includes :

• 1 x MB102 Breadboard Power Supply Module 3.3V/5V
