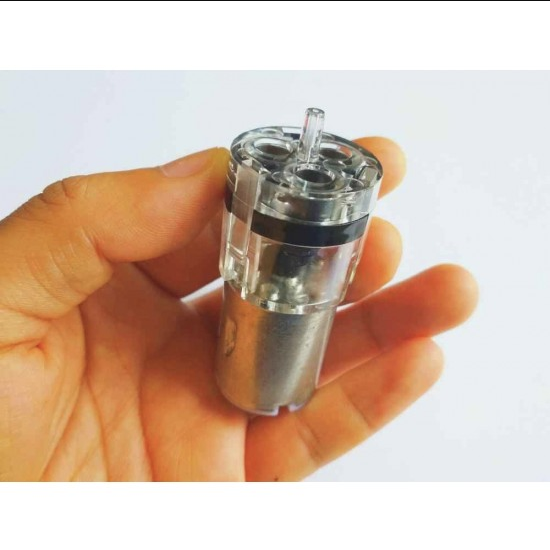

Mitsumi 6V to 12V Mini Air or Oxygen Pump (R14 Type)
Mitsumi 6V to 12V Mini Air or Oxygen Pump (R14 Type)
Mitsumi 6V to 12V Mini Air/Oxygen Pump (R14 Type) is a DC motor driver air pump or air inflator. This is a small air pump and can be used in any DIY projects like aquariums to supply oxygen. It can be controlled by any controller like Arduino, Raspberry Pi, AVR, PIC or any other controller. The pump is very easy to assemble, interface and a low power device.
Features
- Small or miniature size
- Compatible with any controller
- Reliable performance
- Easy to assemble and interface
- Low power consumption
Specification:
|
Operating Voltage(VDC) |
4.5V to 12V |
|
Max. Current(mA) |
200mA |
|
Rated power consumption |
1.5W to 2W |
|
Air leakage |
3.0mmHg/min |
|
Pressing time |
11.5S |
|
Maximum pressure |
400mmHg |
|
Outlet diameter |
4.1 mm |
|
Length (mm) |
55.6 |
|
Motor diameter (mm) |
24.3 |
Application:
- DIY mini aquarium
- Blood pressure monitor
- Airbag eye massage belt
- Any DIY project where air needs to be inflated
Package Includes:
- 1 x Mitsumi 370 DC pump 6V 200mA Oxygen Pump Tank Motor
