PL2303 - PL2303HX USB to TTL Serial UART Converter Module

PL2303 - PL2303HX USB to TTL Serial UART Converter Module is a handy, low cost module. Adopt imported controller RS232 TTL, which can stabilize the flash with high-speed 500mA self-recovery fuse for protection.

Two data transmission indicator can monitor data transfer status in real time. Reserve 3.3V and 5V pin interface, easy for DDWRT of different voltage system that needs power. The entire board is coated by a high quality transparent heat-shrinkable sleeve, making the PCB in insulation state from outside, so that the board won’t be burnt down by a material shortcut.

Features :

• Adopt imported controller PL2303HX, which can stabilize the flash with high speed
• 500mA self-recovery fuse for protection

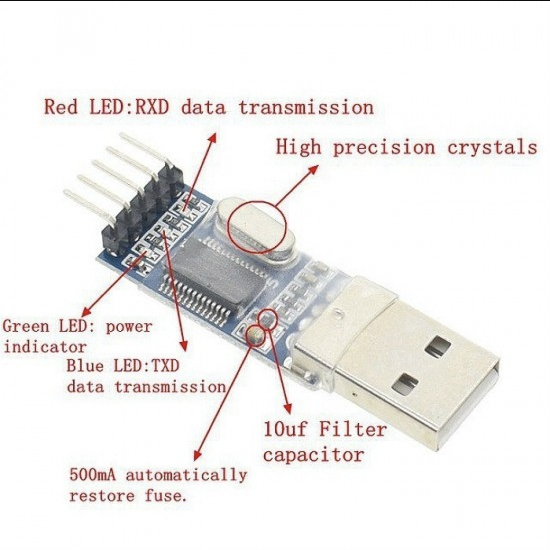

• Two data transmission indicator can monitor data transfer status in real time
• Reserve 3.3V and 5V pin interface, easy for the DDWRT of different voltage system that needs power
• The entire board is coated by the high quality transparent heat-shrinkable sleeve, making the PCB in insulation state from outside,
• so that the board won’t be burnt down by material shortcut.
• Electrostatic package ensures the board will not be damaged before use
• Excellent driver support--drivers are available for Windows 98 to Windows 7 (32 bit and 64 bit), Mac OS 8 to OS X (32 bit and 64 bit) and Linux. Even Android is supported!

Specifications:

Applications:

• All kinds of satellites set-top box upgrade
• Router, HDD, ADSL, broadband modem firmware upgrade or cracked upgrade
• cellphone, XBOX360, GPS serial communication, vehicle inspection and test, DVD flash and so on
• Burn write STC MCU, NXP MCU, Renesas MCU, NEC MCU and so on
• Simple UART communication commonly used UART debugging tools in supper terminal
• USB signal transferred to TTL signal may be used by electronic enthusiasts

Drivers Download : Click Here

Package Includes:

• 1 x PL2303 - PL2303HX USB to TTL Serial UART Converter Module
