USB to Serial RS232 TTL UART Converter Module Adapter - CP2102 based

Interface Converter Modules

USB to Serial RS232 TTL UART Converter Module Adapter - CP2102 based

star star star star star

0 rating

Just for you!

SKU: Anil380

MRP: Rs. 273.00

Rs. 220.00 (Incl. Tax)

Save Rs. 53.00 (19% off)

Rs. 198.00 / pack of 1 = Rs. 198.00 per piece

Pay later available

on orders above ₹300

View options

Quantity

USB to Serial RS232 TTL UART Converter Module Adapter - CP2102 based

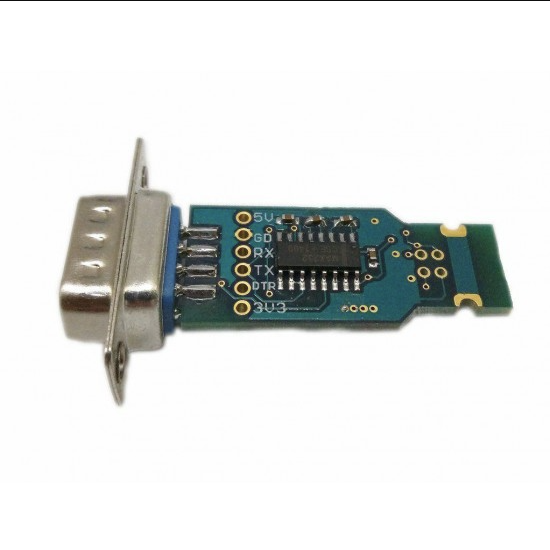

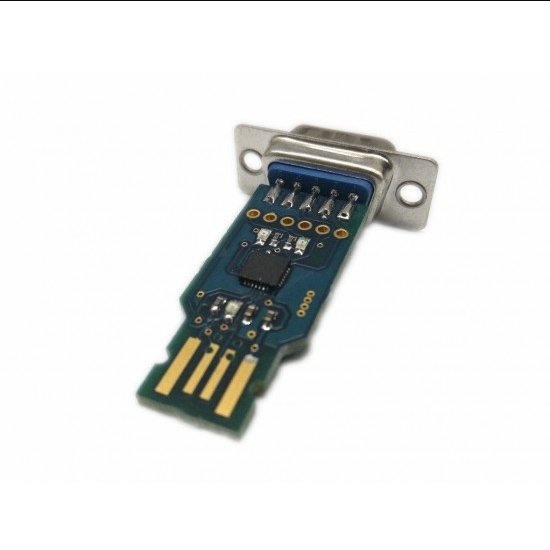

USB to Serial RS232 TTL UART Converter Module Adapter - CP2102 based is a CP1202 USB UART converter module, a very simple board to quickly connect USB to Serial or USB to TTL or Serial to USB. You can easily communicate with microcontrollers / microprocessors from your computer through the module. If you need TTL pins for communication, you can find TX, RX and GND points on board, connect it to TTL pins of microcontrollers for direct communication without DB9 connector.

Specifications and Features:

RS232 with DB9 connector + TTL points on board - USB specification 2.0 compliant with full-speed 12Mbps.
CP2102 Based - Better and Faster than Cheap PL2303 based boards
Supports Windows 8.1 / 8 / 7 / Vista / Server 2003 / XP / 2000 / 98SE / CE 6.0 / CE 5.0, Max OS X / Mac OS 9, Linux 3.x.x / 2.x.x
Create virtual COM port and connect your old devices which use serial port communication
Connect the USB A to B Cable to USB B socket of the module and USB port of the computer, install drivers and you will be assigned a COM port through which you can communicate as you do through a SERIAL port.
You can easily communicate with microcontrollers / microprocessors from your computer through the module. If you need TTL pins for communication, you can find TX, RX and GND points on board, solder 3 berg sticks and connect it to TTL pins of microcontrollers for direct communication without DB9 connector (No need to use MAX232 / MAX3232 for RS232 to TTL conversion in this case)
Supports Windows 8.1 / 8 / 7 / Vista / Server 2003 / XP / 2000 / 98SE / CE 6.0 / CE 5.0 Supports Max OS X / Mac OS 9 Supports Linux 3.x.x / 2.x.x.
Baud rates: 300 bps to 1 Mbps.
Byte receive buffer: 640 byte transmit buffer.
Create virtual COM port and connect your old devices which use serial port communication Compatible with both 3.3V & 5V levels LED indication (ON only when port is opened and being used, otherwise OFF)
Temperature Range: -40 to +85.
