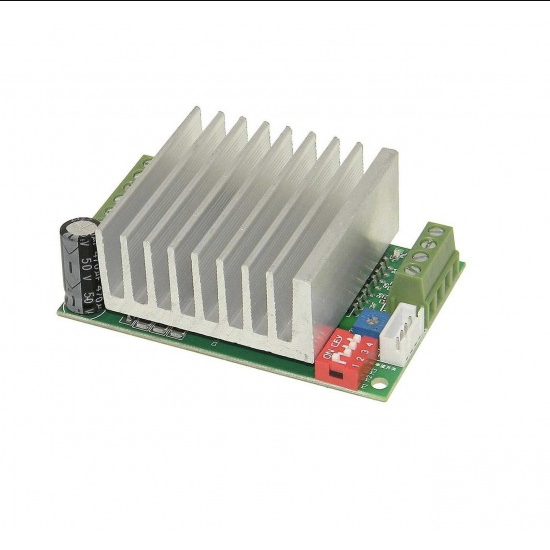

TB6600 4A Stepper motor Driver Controller 9-42V

TB6600 stepper motor driver provides maximum 4.5A output current. TB6600 comes with output sort-circuit protection, Low-Pressure shut-off, Overheating parking and over-current protection. Output current is infinitely adjustable to meet various applications.

Features:

• High-speed optical coupling 6N137, ensure high speed without losing step.
• Toshiba's new high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560.
• For 4.2A 42,57,86 within the two-phase / four-phase / four-wire / six-wire stepper motor.
• The output current is infinitely adjustable to meet your various application requirements.
• Automatic half current function. And a semi-automatic flow switch, easy to use.
• The use of high-speed optical coupling 6N137 ensure high-speed without losing step.
• Printed on the back panel are subdivided setup instructions.
• Used to increase the heat sink, good heat dissipation.
• Output short-circuit protection, the use of mind.

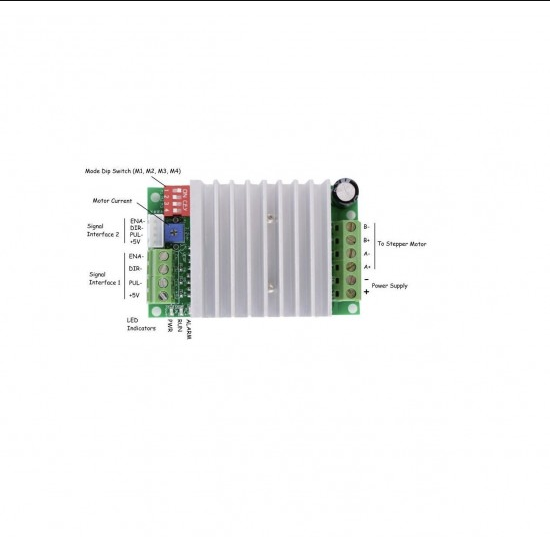

• Using common anode input mode, there are two input terminals, wiring more convenient.

Specification:

Package Includes:

• 1 x TB6600 4A Stepper motor Driver Controller 9-42V
