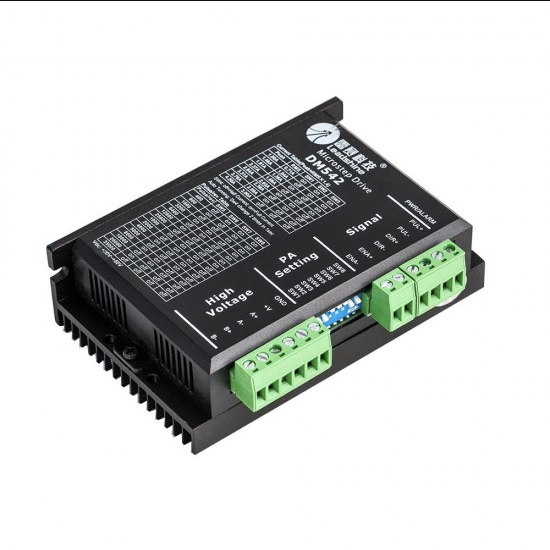

Leadshine DM542 Digital Stepper Motor Driver 20-50 VDC with 1.0-4.2A

Leadshine DM542 Digital Stepper Motor Driver 20-50 VDC with 1.0-4.2A is an economical microstepping driver based on patented technology of Leadshine. It is suitable for driving 2-phase and 4-phase hybrid stepping motors. By using the advanced bipolar constant-current chopping technique, it can output more speed and torque from the same motor, compared with traditional drivers, such as L/R drivers. Its 3-state current control technology allows coil currents to be well controlled and with relatively small current ripple, therefore less motor heating is achieved.

The DM542 is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offer a quick setup to optimal modes with different motors.

Compared with traditional analog drives, DM542 can drive a stepper motor at the much lower noise, lower heating, and smoother movement. Its unique features make DM542T an ideal choice for high requirement applications. We highly recommend this to work as NEMA 17 driver and NEMA 23 driver.

Features:

Extremely cost-effective
Good high-speed performance
Automatic idle-current reduction
3-state current control technology
Self-adjustment technology
Pure-sinusoidal current control technology
TTL compatible and optically isolated input
15 selectable resolutions in decimal and binary, up to 25,600 steps/rev
Suitable for 2-phase and 4-phase motors
DIP switch current setting with 8 different values
Support PUL/DIR and CW/CCW modes
Short-voltage, over-voltage, over-current protection

Specifications:

Model	DM542
Supply Voltage (V)	50
Output Current (Amp)	4.2
Pulse Frequency (KHz)	300
Operating Temperature (°C)	-10 to 50
Length (mm)	118
Width (mm)	75
Height (mm)	33
Weight (gm)	255
