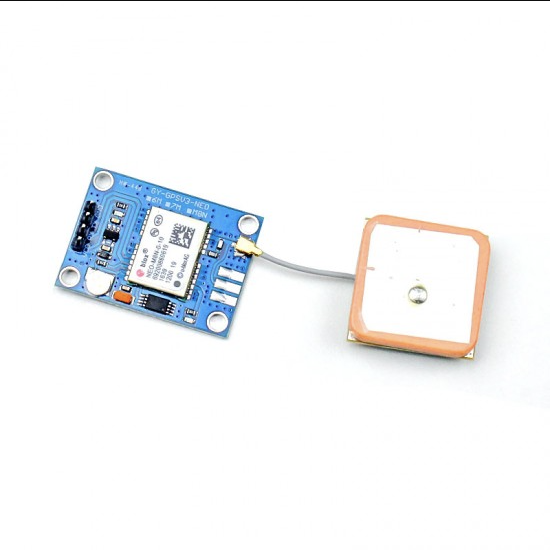

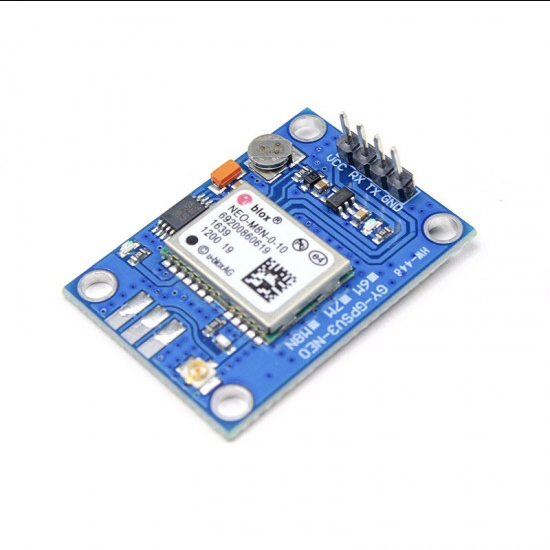

UBlox NEO-M8N GPS Module with Ceramic Active Antenna

The UBlox NEO M8N GPS Module with Ceramic Active Antenna GYGPSV1-8M is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The futureproof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

The NEO-M8 series of concurrent GNSS modules are built on the high performing u-Blox M8 GNSS engine in the industry proven NEO form factor. NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

Note: It is a manual measurement, there may be 2-3 mm error. And item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

Features :

• The ceramic antenna provides a very strong signal
• With LED indicator lamp
• The default baud rate: 9600.
• With data backup battery.
• LED signal indicator.
• Compatible with various flight controller module.
• EEPROM save the configuration parameter data when power-down.
• Assistance AssistNow GNSS Online
• AssistNow GNSS Offline (up to 35 days)
• AssistNow Autonomous (up to 6 days)
• OMA SUPL & 3GPP compliant
• Oscillator TCXO
• Built-in RTC crystal
• Anti-jamming Active CW detection and removal.
• Extra onboard SAW bandpass filter
• Memory Flash
• Supported antennas Active and passive
• Odometer Travelled distance
• Data-logger For position, velocity, and time

Specifications:

Package Includes :

• 1 x Ublox NEO M8N GPS Module.
• 1 x Ceramic Active Antenna.
