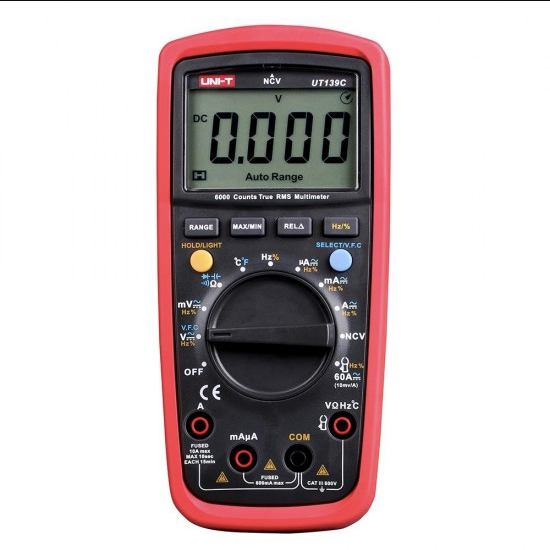

Uni-T UT139C True RMS Digital Multimeter

Uni-T UT139C True RMS Digital Multimeter is a True RMS auto range digital multimeter with 6000 display count, featuring VFC, NCV, Max/Min/Rel measurements. UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.

Features:

• MAX/MIN/REL modes
• Data hold, LED backlight, auto power off
• VFC: low pass filter
• Full range protection (600V)
• True RMS
• NCV
• Auto/manual ranges selectable

Specifications:

Specifications	Range	UT139C
DC voltage (V)	600V	±(0.5%+2)
AC voltage (V)	600V	±(0.8%+3)
DC current (A)	10A	±(0.7%+2)
AC current (A)	10A	±(1%+3)
Resistance (Ω)	60MΩ	±(0.8%+2)
Capacitance (F)	99.99mF	±(4%+5)
Frequency (Hz)	10Hz~10MHz	±(0.1%+4)
Temperature (°C)	-40°C~1000°C	±(1%+3)
Temperature (°F)	-40°F~1832°F	±(1.5%+5)
Features
Display count		6000
Auto range/Manual range /True RMS		√
Bandwidth (Hz)		45Hz~1kHz
NCV/Continuity buzzer		√
Duty cycle	0.1%~99.9%	Write a review Your Name   Your Review Note: HTML is not translated! Rating Bad      Good Captcha Please complete the captcha validation below Continue There are no reviews for this product. People Also Bought Leadshine DM542 Digital Stepper Motor Driver 20-50 VDC with 1.0-4.2A Leadshine DM542 Digital Stepper Motor Driver 20-50 VDC with 1.0-4.2A is an economical microstepping driver based on patented technology of Leadshine. .. ₹4,900 Ex Tax:₹4,152.54     Notify Me! Add to Wish List Compare this Product Join Waitlist Question -12 % L293D Motor Driver Shield for Arduino This L293D Motor Driver Shield for Arduino is probably one of the most versatile on the market and features 2 servo and 4 motor connectors for DC or s.. ₹149 ₹170 Ex Tax:₹126.27     Add to Cart Add to Wish List Compare this Product Buy Now Question Raspberry PI Infrared IR Night Vision Surveillance Camera Module 500W Webcam This Raspberry PI Infrared IR Night Vision Surveillance Camera Module 500W Webcam is useful in daylight as well as in the darkness of night also!!!It .. ₹1,180 Ex Tax:₹1,000     Add to Cart Add to Wish List Compare this Product Buy Now Question 20CM 40 Pin Male-Male, Male-Female, Female-Female Cable Combo This is the combo of 20CM Wire Color Jumper Cable, 2.54mm 1P-1P M-M, M-F, F-F 40PCS of wire in each strip of cable. It is very Flexible and easily det.. ₹189 Ex Tax:₹160.17     Add to Cart Add to Wish List Compare this Product Buy Now Question Robot Wheel 10cm x 2cm Width These Track Wheel for DC Motors 2x10cm can be easily installed on any type of geared DC motors. This is Robot Wheel with 10cm Diameter and 2cm Width. .. ₹59 Ex Tax:₹50     Notify Me! Add to Wish List Compare this Product Join Waitlist Question MKS TFT35 Touch Screen 3.5inch Display This is a 3.5 inch TFT Touch Display for the Maker Base 3D printer controller board. The board has an SD card reader in front which makes it easy to u.. ₹2,440 Ex Tax:₹2,067.80     Notify Me! Add to Wish List Compare this Product Join Waitlist Question SPDT Slide Switch-PCB Mount (Pack of 10) It is a SPDT Slide Switch-PCB Mount (Pack of 10). Commonly used in DIY projects, small power electronics projects, etc.Package Includes:10 x 4mm SPDT .. ₹49 Ex Tax:₹41.53     Add to Cart Add to Wish List Compare this Product Buy Now Question MY6812 150W 24V 2750RPM DC Motor for E-Bike Bicycle - Unite Make MY6812 150W 24V 2750RPM DC Motor is a Unite make motor popular as a scooter motor or general application motor. Extremely durable and reliable. Common.. ₹2,150 Ex Tax:₹1,822.03     Add to Cart Add to Wish List Compare this Product Buy Now Question UNO R3 CH340G ATMega328P compatible with arduino + Cable + Shell Case For Uno R3 This is UNO R3 CH340G ATMega328P compatible with arduino + Cable + Shell Case For Uno R3. A basic Arduino kit with all the components included elimina.. ₹570 Ex Tax:₹483.05     Notify Me! Add to Wish List Compare this Product Join Waitlist Question ATMEGA16U2 Arduino Mega 2560 R3 Improved Version CH340G Board Arduino board is an open-source microcontroller board which is based on Atmega 2560 microcontroller. The growth environment of this board executes the.. ₹975 Ex Tax:₹826.27     Add to Cart Add to Wish List Compare this Product Buy Now Question -5 % 300 RPM 12V Johnson Geared DC Motor Grade-B 300 RPM 12V Johnson Geared DC Motor Grade-B is a simple DC motor featuring metal gearbox for driving the shaft of the motor, so it is a mechanically c.. ₹360 ₹380 Ex Tax:₹305.08     Add to Cart Add to Wish List Compare this Product Buy Now Question 360 mAh 1S 30C/60C (3.7V) Orange Lithium Polymer Battery Pack (LiPo) This is a high-performance lightweight single cell lipo 360 mAh battery pack which you can be used to power microcontrollers, servo and other 0-7 V po.. ₹350 Ex Tax:₹296.61     Notify Me! Add to Wish List Compare this Product Join Waitlist Question Cytron SmartDrive MDDS30A 30Amp Dual DC Motor Driver (Peak 80Amp) Cytron SmartDrive MDDS30A 30Amp Dual DC Motor Driver (Peak 80Amp) is SmartDriveDuo-30, with the ease of accepting the RC (Radio Control) signal to dri.. ₹5,490 Ex Tax:₹4,652.54     Notify Me! Add to Wish List Compare this Product Join Waitlist Question PS-5521MG 20KG Large Torque Metal Gear Standrd Analog Servo Motor PS-5521MG 20KG Large Torque Metal Gear Standrd Analog Servo Motor is a powerful high torque servo motor use to operate at heavy load. This is best cho.. ₹1,800 Ex Tax:₹1,525.42     Add to Cart Add to Wish List Compare this Product Buy Now Question Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control can be used as a signal generator for electric speed controller (ESC) and.. ₹130 Ex Tax:₹110.17     Add to Cart Add to Wish List Compare this Product Buy Now Question       Recently Viewed Most Viewed Uni-T UT139C True RMS Digital Multimeter ₹3,550 Ex Tax:₹3,008.47   Join Waitlist Add to Wish List Compare this Product Digital Multimeter DT830D Yellow Color - 1000V DC/750V AC ₹190 Ex Tax:₹161.02   Add to Cart Add to Wish List Compare this Product SN390 Adjustable Printed Circuit Board Holder Frame PCB Soldering Assembly Stand Clamp ₹890 Ex Tax:₹754.24   Join Waitlist Add to Wish List Compare this Product Multipurpose Precision Welding Soldering Machine Iron Stand with Magnifying Glass ( Helping Hands) ₹625 Ex Tax:₹529.66   Add to Cart Add to Wish List Compare this Product       Facebook Twitter Instagram You Tube Pinterest About Us About Us Privacy Statement Terms & Conditions Return Policy Shipping Policy Customer Service Contact Returns Brands Blog Track Your Order My Account My Account Order History Gift Certificates Reward Points Payment Options Sitemap Newsletter Stay up to date with news and promotions by signing up for our newsletter Send Copyright 2019 © Techtonics Visa Paypal Mastercard Amex OK   We use cookies and other similar technologies to improve your browsing experience and the functionality of our site as per our Privacy Policy.
