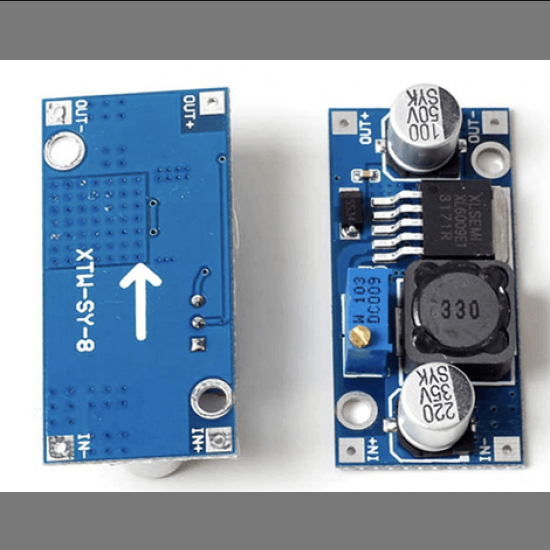

XL6009 DC-DC Adjustable 5-35V Step-up Boost Power Converter Module

This XL6009 DC-DC Adjustable 5-35V Step-Up Boost Power Converter Module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.

It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%. High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller.

Features :

• The performance is much higher than LM2577.
• Non-isolated Boost converter.
• It has a non-synchronous rectifier.
• Small and Handy voltage regulator module.

Specifications:

Pins

• IN+ input positive
• IN- input negative!
• OUT+ output positive
• OUT- output negative

Package Includes :

• 1 x XL6009 DC-DC Adjustable 5-35V Step-Up Boost Power Converter Regulator Module
