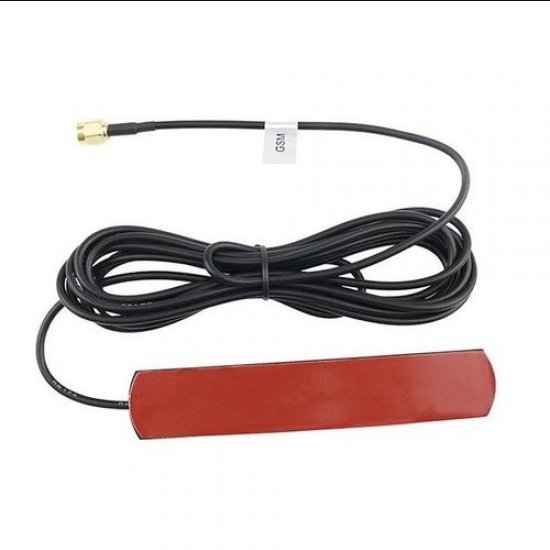

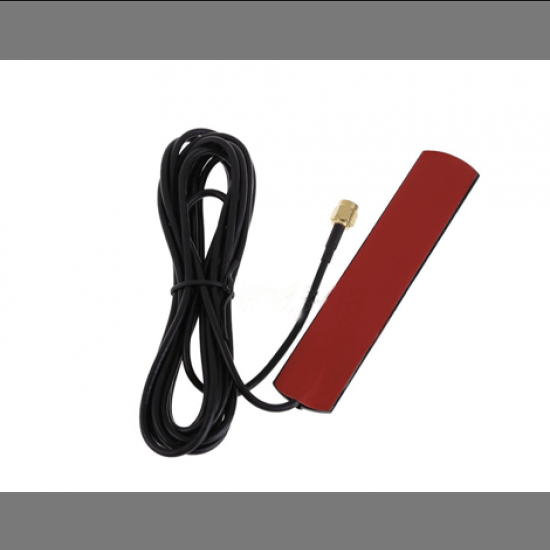

GSM 3DBI Sticker Antenna (Patch Antenna) 3M cable

A Quad-band antenna for embedded cellular devices. GSM 3DBI Sticker Antenna (Patch Antenna) 3M cable will allow you to connect your cellular module to the outside world. Operates on four frequencies. Comes with a 3M adhesive backing for mounting. Standard male SMA terminated.

Specifications:

• Quad-band: 850/900/1800/1900MHz and 2.4GHz
• For GSM/GPRS, CDMA/1X, TDMA/AMPs, CDPD, 2 Way pager Re-Flex
• Size: 115x22x4mm

Electrical Properties:

• Frequency range: 824 ~ 960 MHz // 1710 ~ 1990 MHz
• Impedance: 50 Ohm nominal
• VSWR: <2.0 : 1
• Gain: 3.5dBi
• Radiation: Omni
• Polarization: Vertical
• Wave: Half Wave Dipole

Mechanical Properties:

• Connector SMA (Male) standard
• Cable: RG174
• Cable length: 3m
• Over-mold housing: ABS Black
• Mounting: Adhesive backing

Operating Temperature:

•  -40 to +85C

Package Includes:

• 1 x 3DBI GSM Sticker Antenna for Wireless Communication
