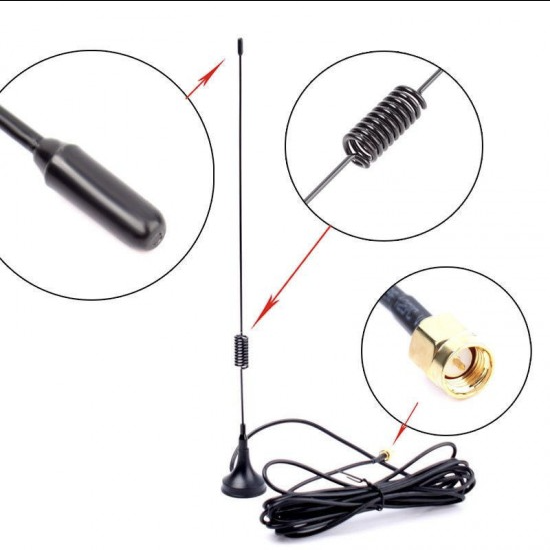

GSM Magnetic Antenna 6dBi SMA with 3mtr cable

GSM Magnetic Antenna 6dBi SMA 900/1800MHz with 3mtr Long cable designed for GSM & GPRS at 900 (i.e. 800 MHz To 960 MHz) as well as 1800 (1780 -1930 MHz) band of communication terminal system.

It's structure is compact and convenient for easy installation. Majorly used in GSM repeater, GSM sensor, GSM module & GSM modems. Also widely used in UV5R/Plus, UV5RA/Plus, UV5RE/Plus, UV5RB, UV5RC, UV5RD, UV3RPlus, BF-320, BF-480, BF-490, BF-520, BF-V6, BF-V8 etc.

Specification:

Electronic specifications:

• Frequency Range
• 800MHz
• 960MHz
• 1780MHz
• 1930MHz
• for V.S.W.R ≤ 2.0 Gain-dBi 6.0
• Polarization Vertical Impedance- Ω 50

Mechanical specifications:

• Connector SMA male
• 3 Meter Wire Length
• Radome material Metal
• Radome color black
• Operation Temperature- -30~60
• Humidity-% 5~95
• Magnetic Base

Package Includes:

• 1 x GSM Magnetic 6dBi Antenna SMA 900/1800MHz with 3mtr Long cable
